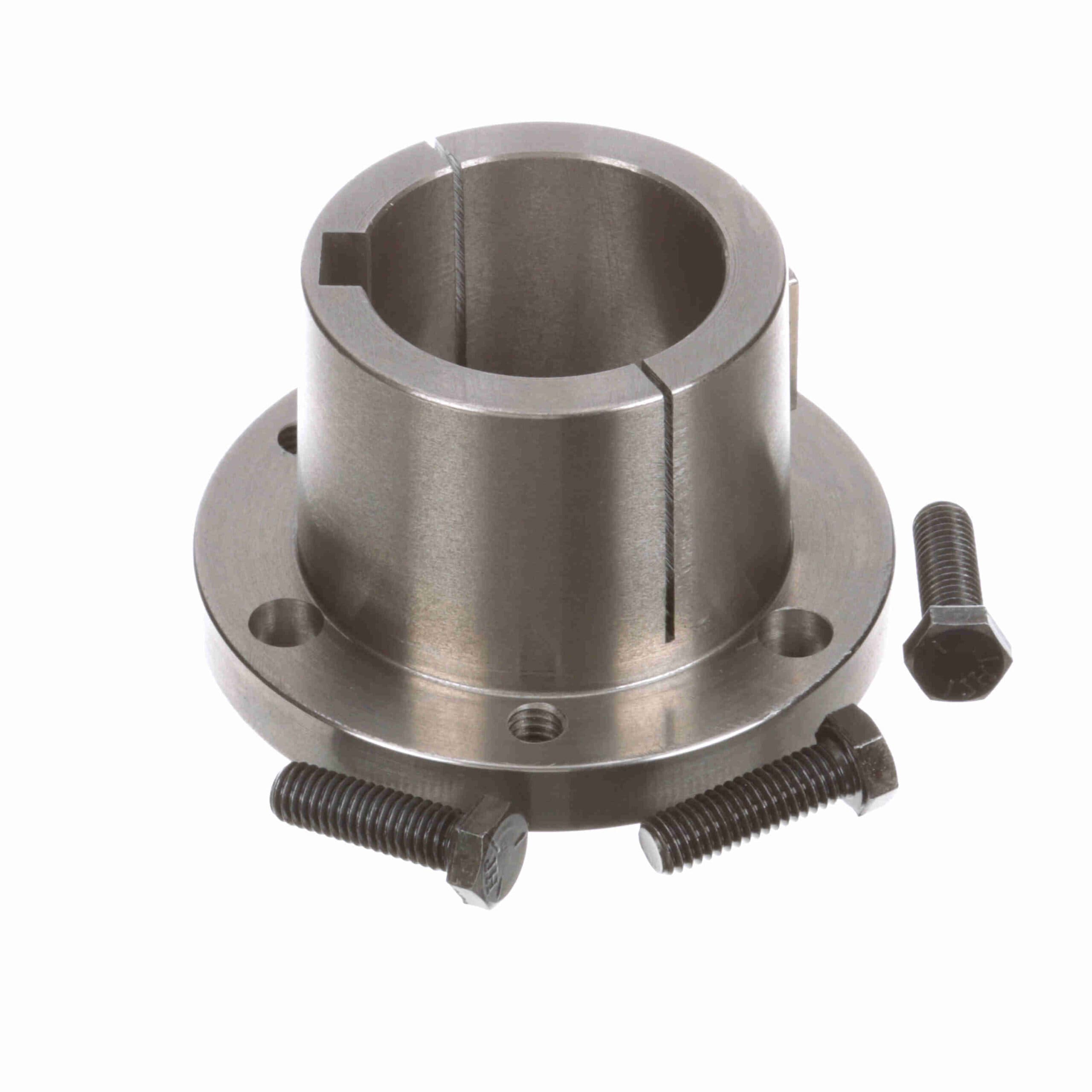

Browning Split Taper Bushing - Inch Bore Type - Q1 2 1/16
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1079045 |
| Product Name | Q1 2 1/16 |
| Brand | Browning |
| Material | Sintered Steel or Ductile Iron |
| Weight | 2.9 lb |
| Package Length | 4.19 in |
| Package Width | 4.19 in |
| Package Height | 2.5 in |
| Cap Screws (Size) | 3/8 x 1 1/4 |
| Compatible Bore Size [Max] (in) | 2.0625 in |
| Bore Size (in) | 2.0625 in |
| Keyseat | 1/2 x 1/4 |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Wrench Torque (in-lb) |
| 348 |
| Length Through Bore (in) | 2.5 in |
| Product Type | Split Taper Bushing |
| Total Length (in) | 2.5 in |
| Bushing Type | Q1 |
| Outside Diameter (in) | 4.125 in |
| Cap Screws (No.) | 3 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-104130 |
| Part NumberiManufacturer catalog number | 1079045 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
