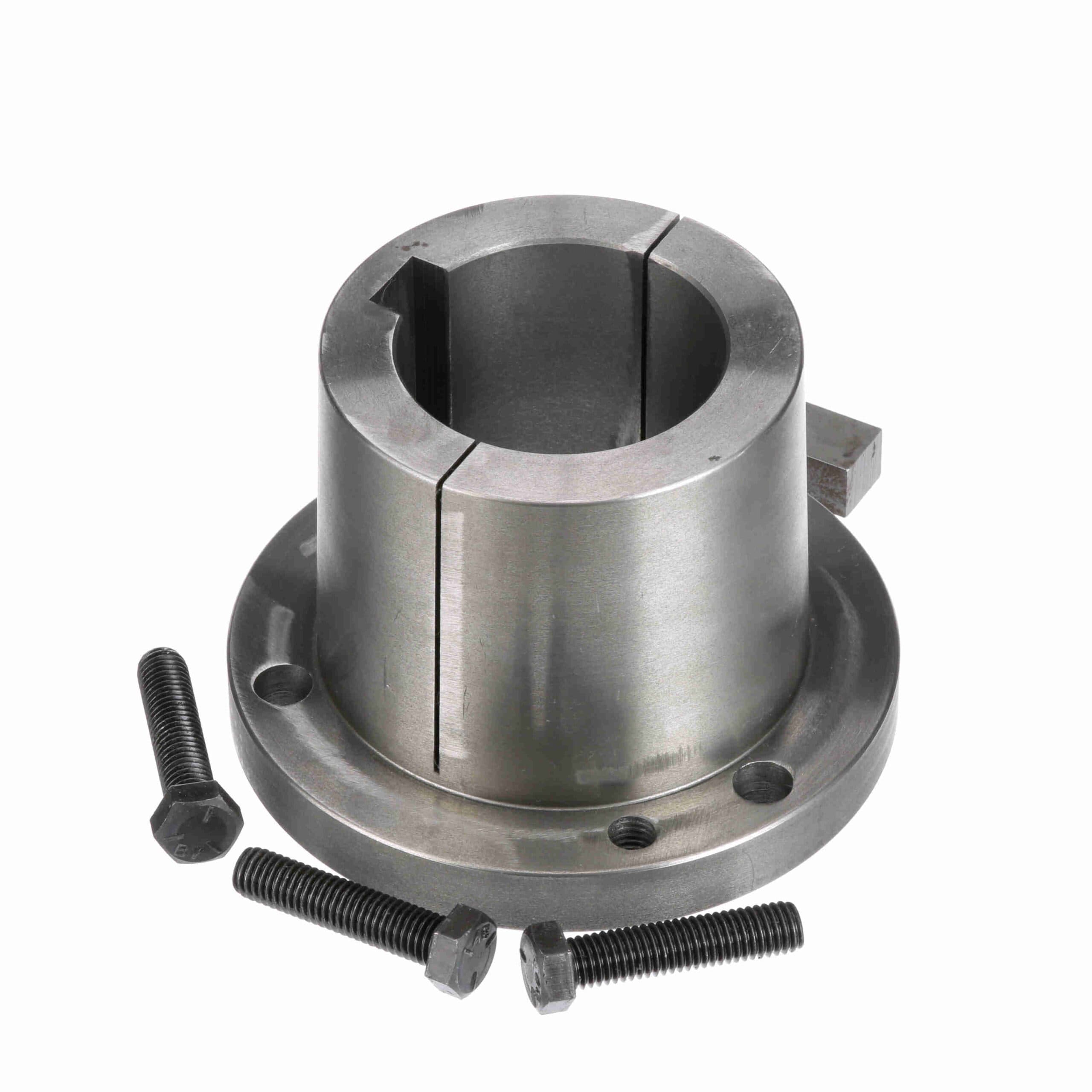

Browning Split Taper Bushing - Inch Bore Type - S1 1 3/4
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1080027 |
| Product Name | S1 1 3/4 |
| Brand | Browning |
| Material | Sintered Steel or Ductile Iron |
| Weight | 20.3 lb |
| Package Length | 6.5 in |
| Package Width | 4.5 in |
| Package Height | 6.63 in |
| Bore Size (in) | 1.75 in |
| Length Through Bore (in) | 4.375 in |
| Bushing Type | S1 |
| Total Length (in) | 4.375 in |
| Product Type |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Split Taper Bushing |
| Wrench Torque (in-lb) | 840 |
| Cap Screws (Size) | 1/2 x 2 1/4 |
| Outside Diameter (in) | 6.375 in |
| Compatible Bore Size [Max] (in) | 1.75 in |
| Keyseat | 3/8 x 3/16 |
| Cap Screws (No.) | 3 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-104215 |
| Part NumberiManufacturer catalog number | 1080027 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
