Bushings

S2 2

Name: S2 2
Brand: Browning
SKU: 1080373
Availability: OutOfStock

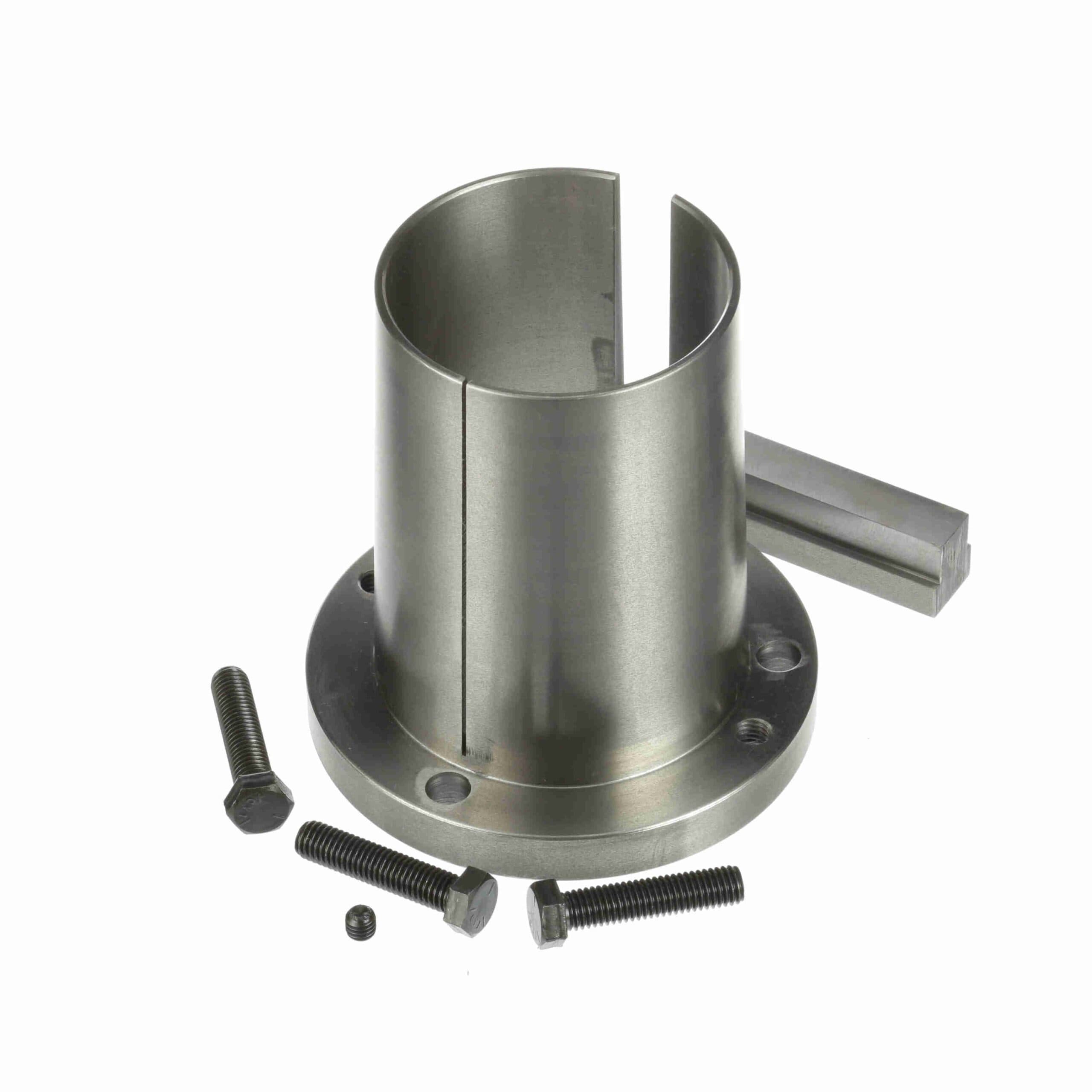

Browning Split Taper Bushing - Inch Bore Type - S2 2

Part Number1080373

GDS #GDS-104248

Product Type

Split Taper Bushing

Material

Sintered Steel or Ductile Iron

Keyseat

1/2 x 1/4

Cap Screws (Size)

1/2 x 2 1/4

Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.

Product Overview

Lifetime Warranty - If this bushing ever fails Browning will replace it Free of charge.
Solid Flange, Double Split Barrel - Assures better concentricity to the shaft.
Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive.
3/4" per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.

Part Number	1080373
Product Name	S2 2
Brand	Browning
Material	Sintered Steel or Ductile Iron
Weight	27.26 lb
Package Length	6.5 in
Package Width	6.75 in
Package Height	6.5 in
Keyseat	1/2 x 1/4
Cap Screws (Size)	1/2 x 2 1/4
Total Length (in)	6.75 in
Length Through Bore (in)	6.75 in
Bore Size (in)

Datasheets, CAD drawings, and installation instructions are available on request.

GDS #iGDS internal part number	GDS-104248
Part NumberiManufacturer catalog number	1080373
BrandiManufacturer or product brand	Browning
CategoryiCatalog classification	Power Transmission > Bushings
