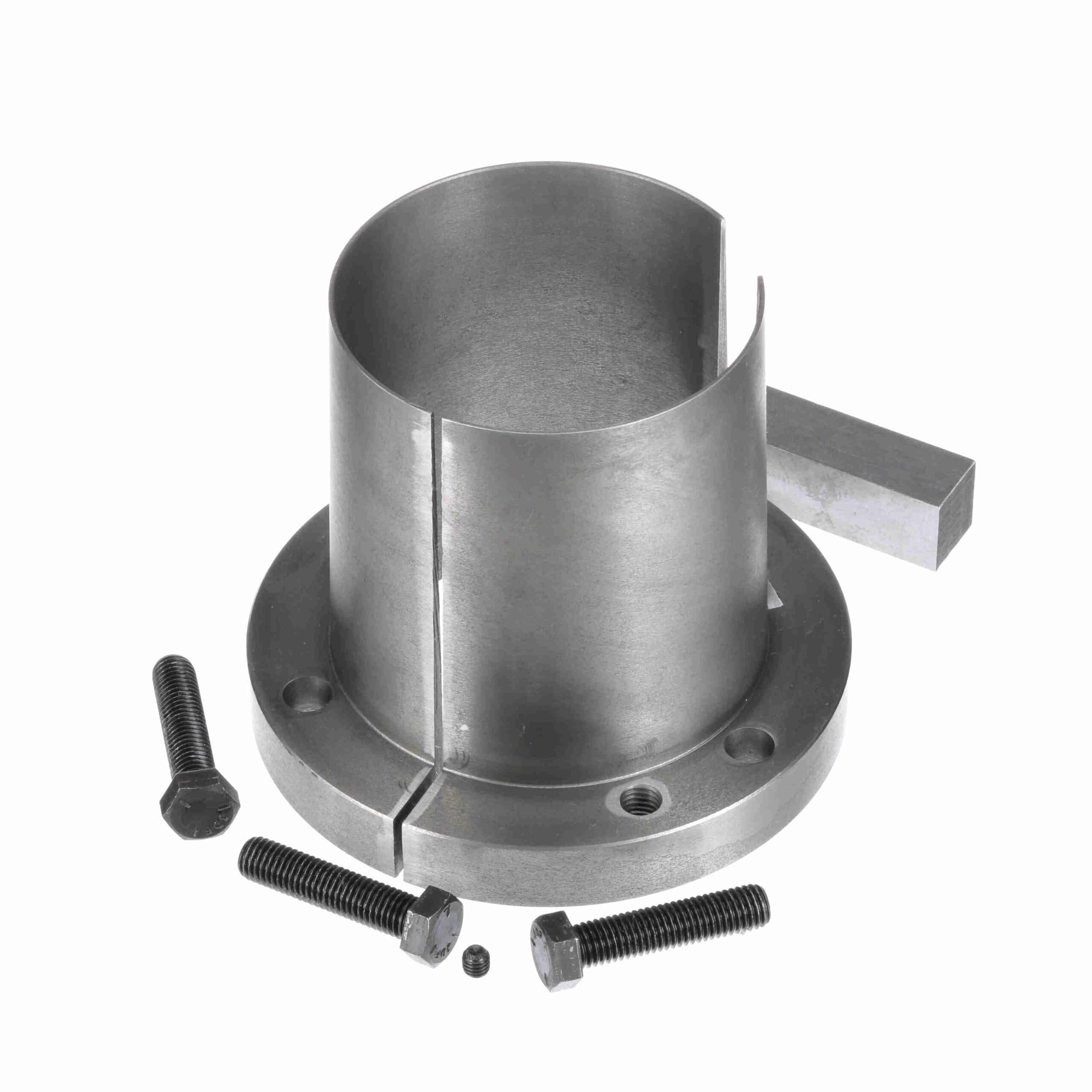

Browning Split Taper Bushing - Inch Bore Type - W2 5 1/4
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1081397 |
| Product Name | W2 5 1/4 |
| Brand | Browning |
| Material | Ductile Iron or Gray Iron |
| Weight | 133 lb |
| Package Length | 18.5 in |
| Package Width | 12 in |
| Package Height | 11.5 in |
| Total Length (in) | 11.25 in |
| Cap Screws (Size) | 3/4 x 3 |
| Wrench Torque (in-lb) | 3, 000 |
| Outside Diameter (in) | 12.5 in |
| Bore Size (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 5.25 in |
| Compatible Bore Size [Max] (in) | 5.25 in |
| Product Type | Split Taper Bushing |
| Length Through Bore (in) | 11.25 in |
| Keyseat | 1 1/4 x 5/8 |
| Bushing Type | W2 |
| Cap Screws (No.) | 4 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-104296 |
| Part NumberiManufacturer catalog number | 1081397 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
