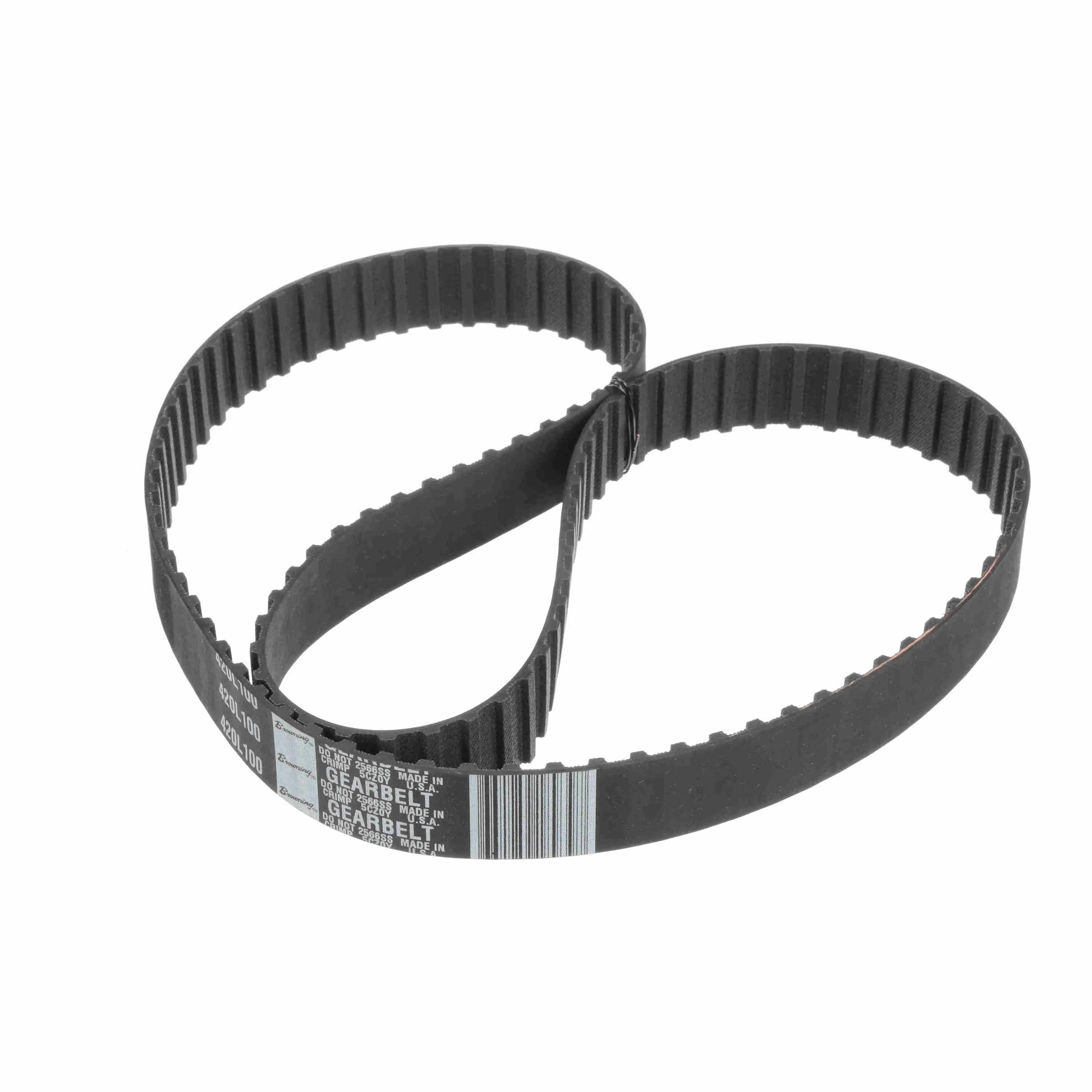

GEARBELTS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1096833 |
| Product Name | 420L100 |
| Brand | Browning |
| Material | Neoprene |
| Weight | 0.188 lb |
| Package Length | 3.35 in |
| Package Width | 9.75 in |
| Package Height | 1.25 in |
| Product Type | Gearbelt |
| Belt Section | L |
| Operating Temperature [Max] ºF | 180 °F |
| Std Package Quantity | 1 |
| Outside Length/Diameter (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $144.69 | — |
| 42 in |
| Operating Temperature [Max] ºC | 82.2 °C |
| Number of teeth | 112 |
| Pitch Designation (mm) | 9.525 |
| Tooth Profile | Trapezoidal |
| Reinforcing cord material | Fiberglass |
| Color | Black |
| Standards met | ARPM IP-24 ISO19347:2029 |
| Resistance Features | Oil & Chemical Resistant per ARPM IP-3-2 |
| Number of toothed sides | 1 |
| HTC | 4010.35.4500 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-104888 |
| Part NumberiManufacturer catalog number | 1096833 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289189397 |
| CategoryiCatalog classification | Belts |
