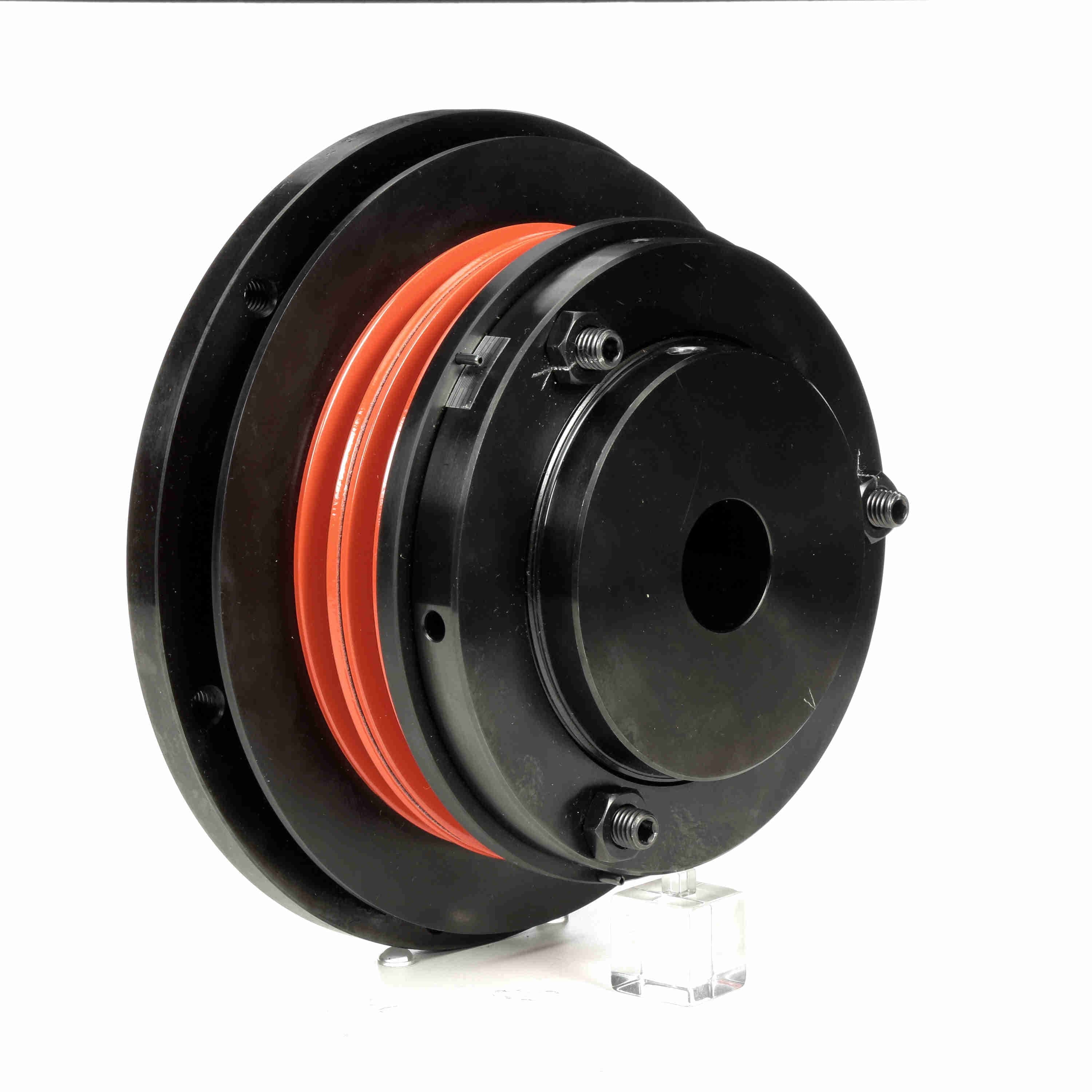

TORQ/PRO
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 187762 |
| Product Name | TP20X1/2 |
| Brand | Browning |
| Weight | 2 lb |
| Package Length | 4.5 in |
| Package Width | 4.5 in |
| Package Height | 3.12 in |
| Detection Method | Ball Detent |
| Type | Torque Overload Devices |
| Sensor Travel | 0.07 |
| Torque [Min] (N-m) | 9.605 |
| Hub Diameter (in) | 1.18 in |
| Number of Bolt Holes |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $2903.63 | — |
| 10+ | $2766.03 | 5% off |
| 4 |
| Total Length (mm) | 46.99 mm |
| Total Length (in) | 1.85 in |
| Mounting Bolt Circle Diameter | 3 |
| Outside Diameter (mm) | 88.9 mm |
| Disconnect Method | Ball Detent |
| Nominal Bore (in) | 0.5 in |
| Disc Spring Color | Orange |
| Recovery Style | Jog |
| Unit Accuracy | 0.1 |
| Bore Size (mm) | 12.7 mm |
| Outside Diameter (in) | 3.5 in |
| Torq/Pro Sprockets | STP20 |
| Bolt Hole Thread Size (in) | 10 | 24 in |
| Clutch size code | 20 |
| Bore Size (in) | 0.5 in |
| Reset Type | Automatic |
| Spring Diameter | 2.13 |
| Speed Limit | 700 |
| Backlash | Small |
| Sensor Plate | Yes |
| Nut Diameter (in) | 1.89 in |
| Bore Shape | Straight Bore |
| Series / Model | TP20 |
| Flange Diameter (in) | 2.44 in |
| Product Type | Torq Pro Torque Limiter |
| Torque Capacity [Min] (lb-ft) | 7.08333333333333 |
| Bore (Max) (in) | 0.5 in |
| Torque Capacity [Max] (lb-ft) | 33.3333333333333 |
| Torque [Max] (N-m) | 45.2 |
| Torque Capacity [Min] (in-lb) | 85 |
| Bore (Min) (in) | 0.5 in |
| Max RPM | 700 |
| Torque Capacity [Max] (in-lb) | 400 |
| HTC | 8483.60.8000 |
| Country of Origin | Japan |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-107662 |
| Part NumberiManufacturer catalog number | 187762 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662288442356 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
