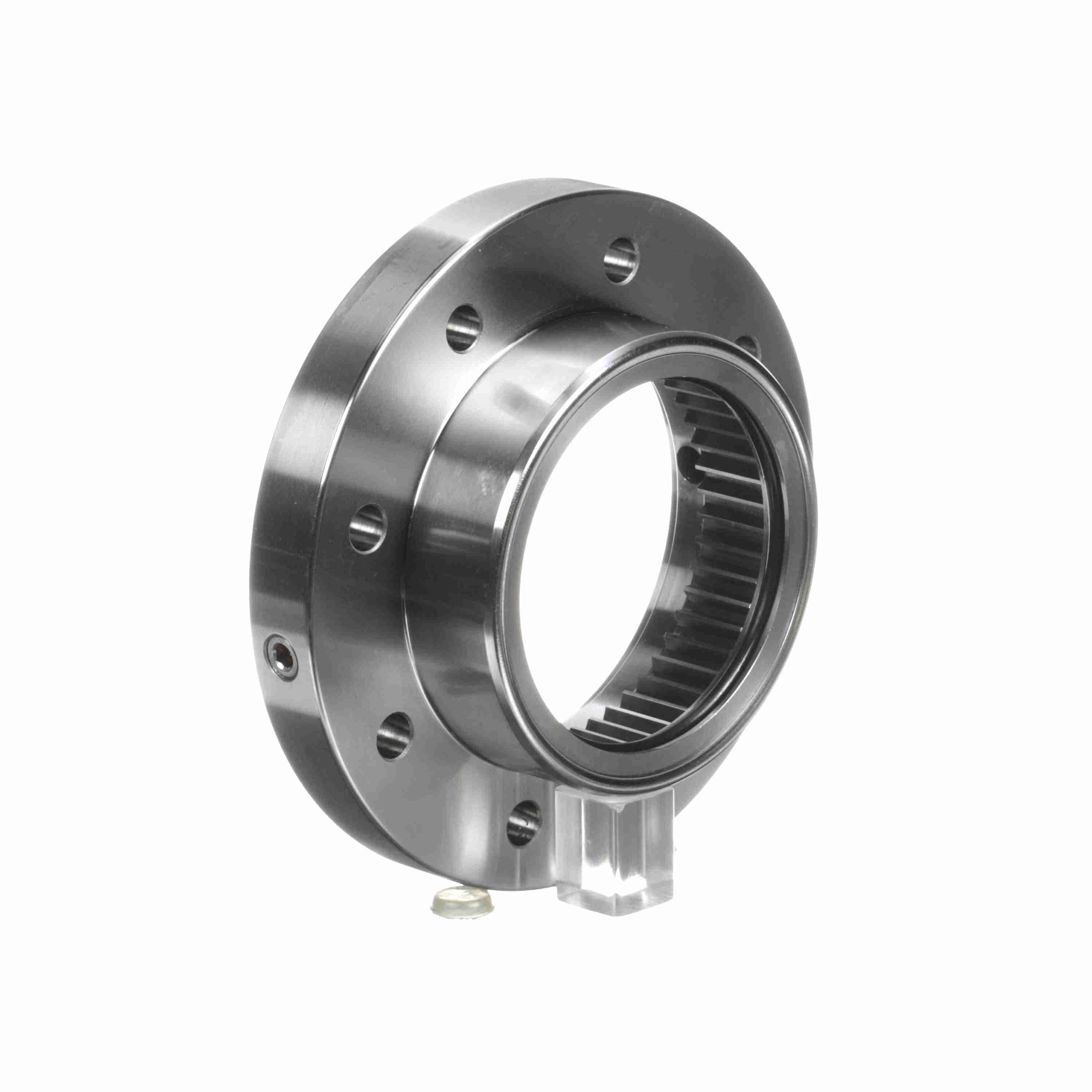

SERIES H COUPLING-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1959055 |
| Product Name | 1 1/2H EB SLEEVE |
| Brand | Kop-Flex |
| Weight | 4.475 lb |
| Package Length | 6.3 in |
| Package Width | 5.9 in |
| Package Height | 2.5 in |
| Bolt Circle | 4.8125 in |
| Bolt Type | Exposed |
| Component Type | Standard Sleeve |
| Configuration | Gear Sleeve |
| Coupling Size | 1.5 |
| Coupling Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $266.10 | — |
| Gear Coupling |
| Lube/Non-Lube | Lubricated |
| Measurement System | Imperial |
| Model | Series H |
| Outside Diameter (in) | 6 in |
| Sleeve Material | Steel |
| Sleeve Overall Length (in) | 1.78125 in |
| Sleeve Type | Flanged |
| Speed Max (rpm) | 12,000 rpm |
| Tooth Profile | Crowned |
| Torque Rating (in-lb) | 17,000 in/lbs |
| HTC | 8483.90.8010 |
| Country of Origin | China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-107875 |
| Part NumberiManufacturer catalog number | 1959055 |
| BrandiManufacturer or product brand | Kop-Flex |
| UPCiUniversal Product Code | 662384415117 |
| CategoryiCatalog classification | Couplings |
