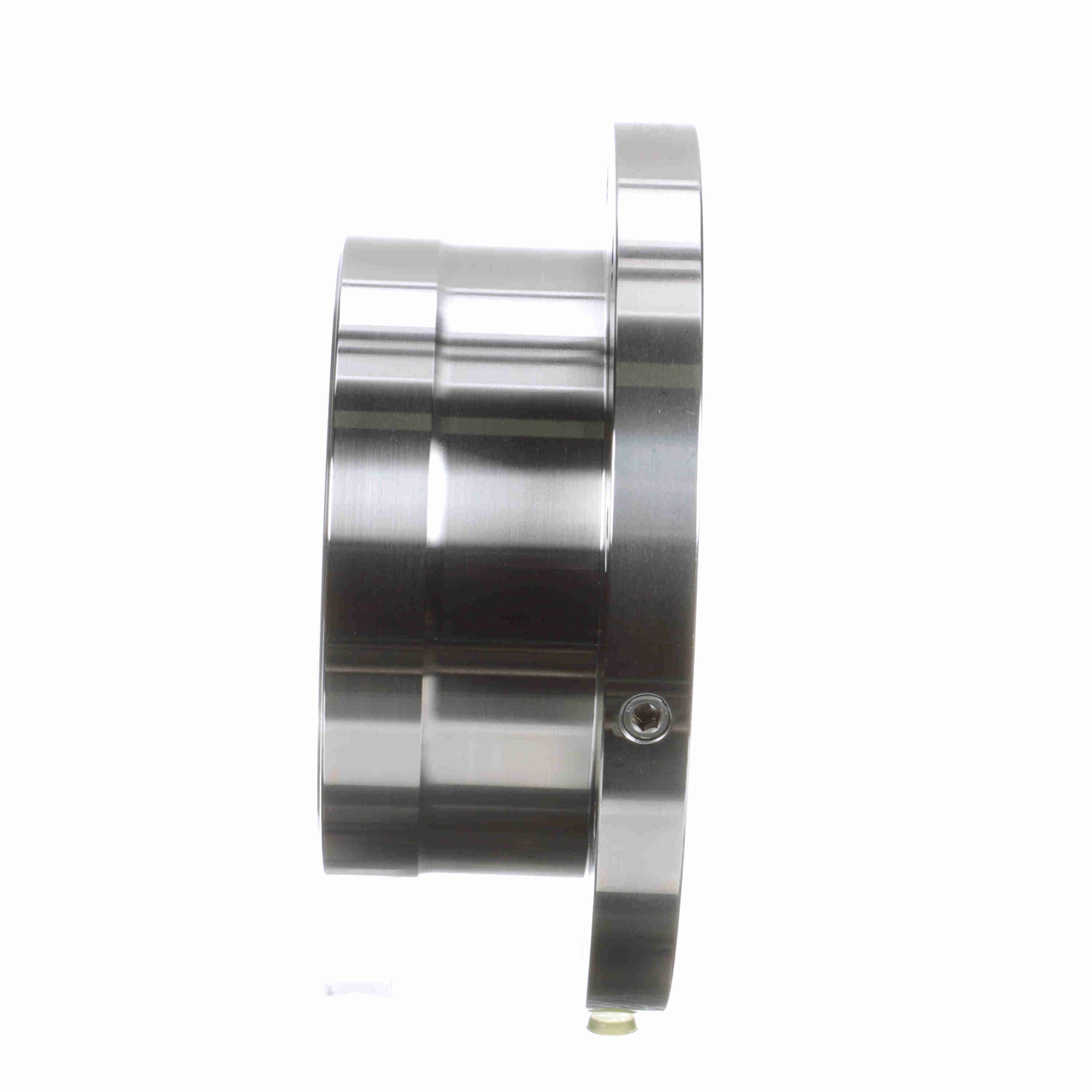

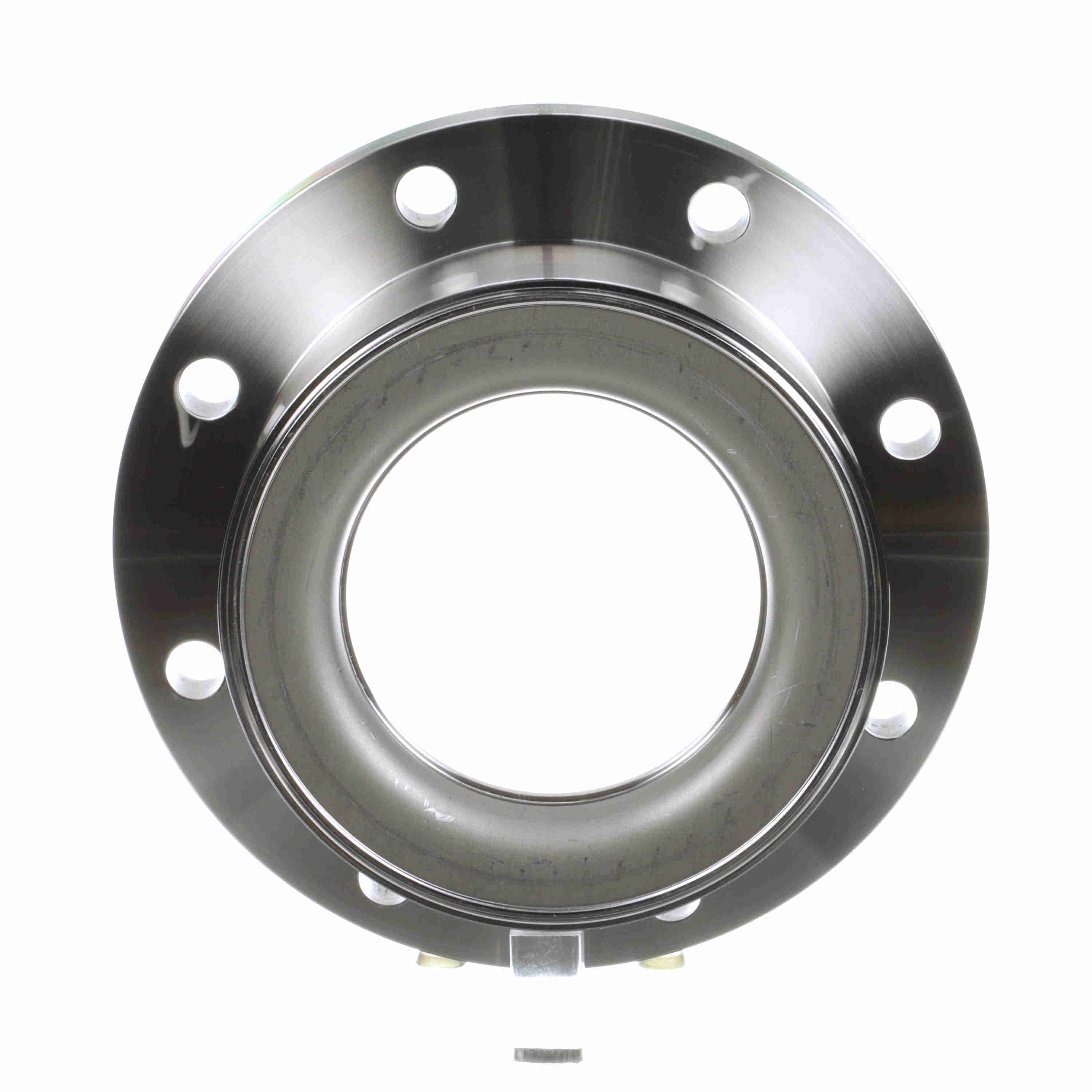

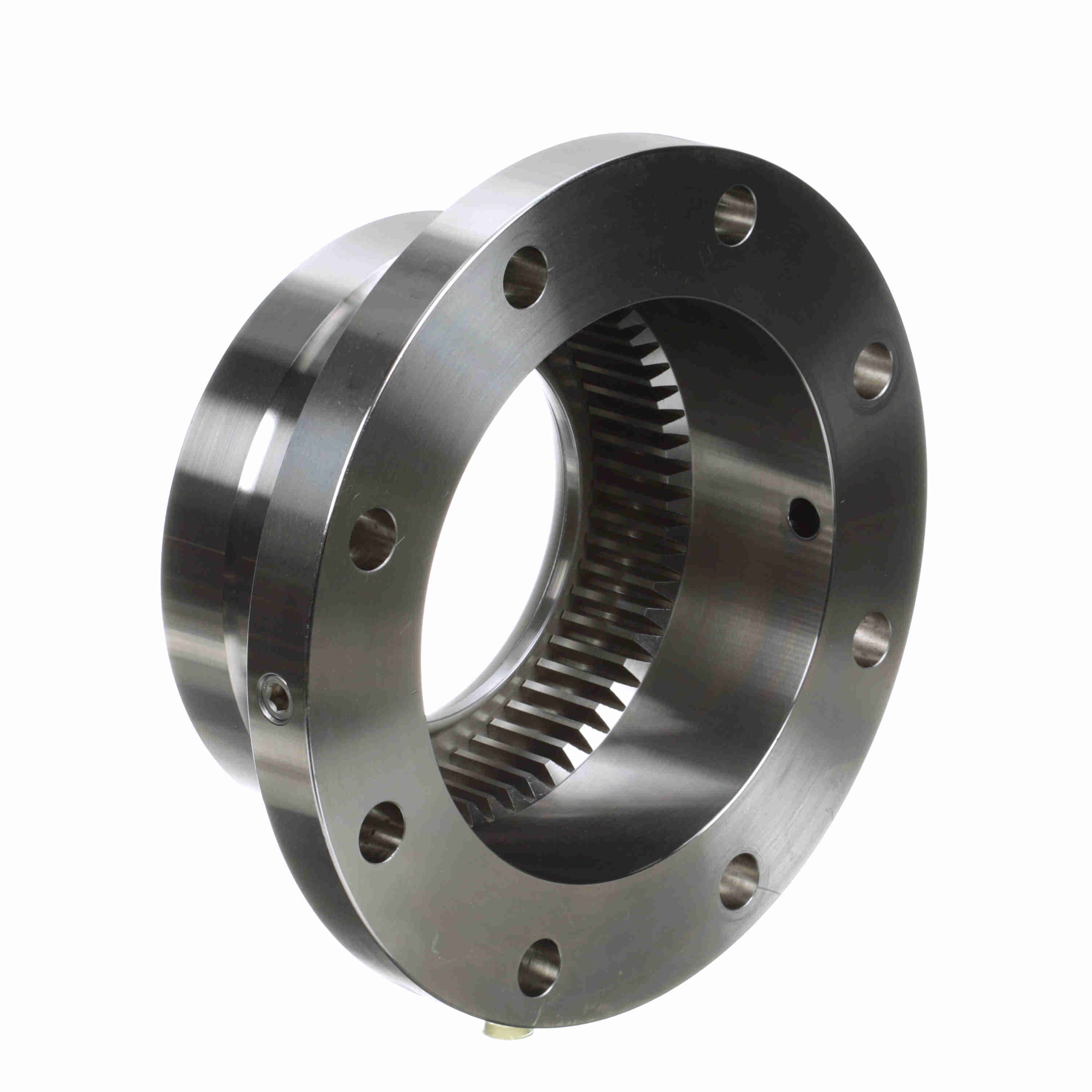

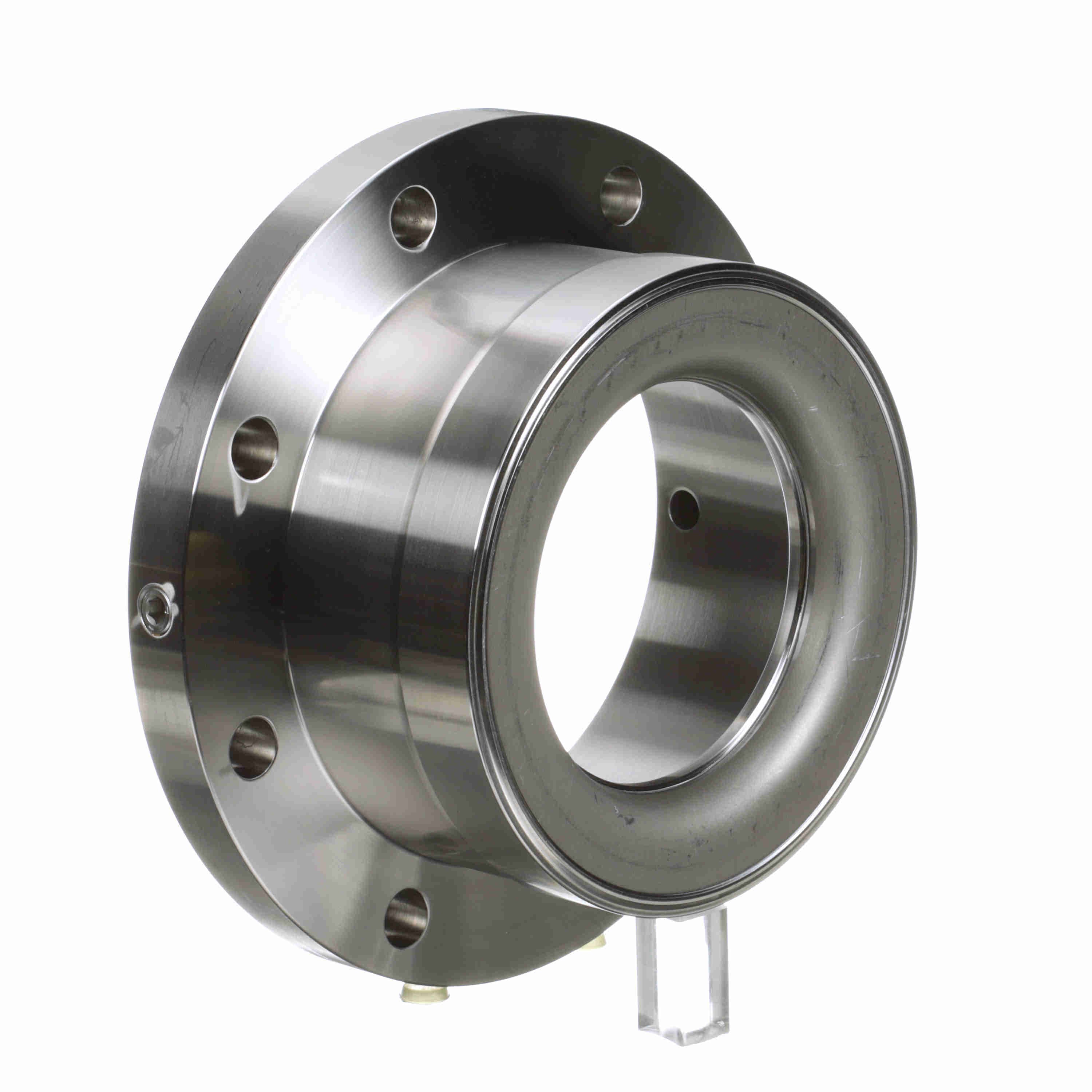

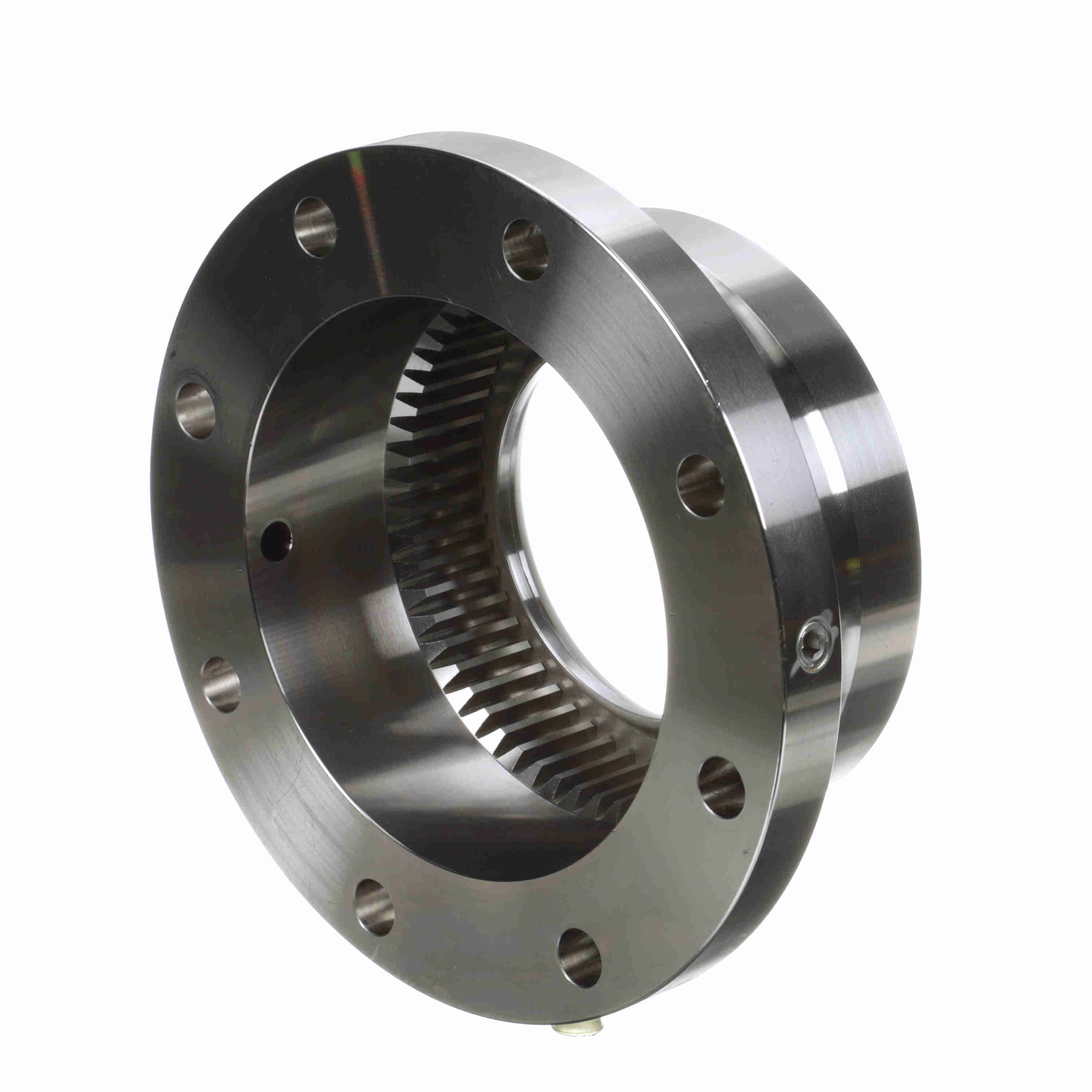

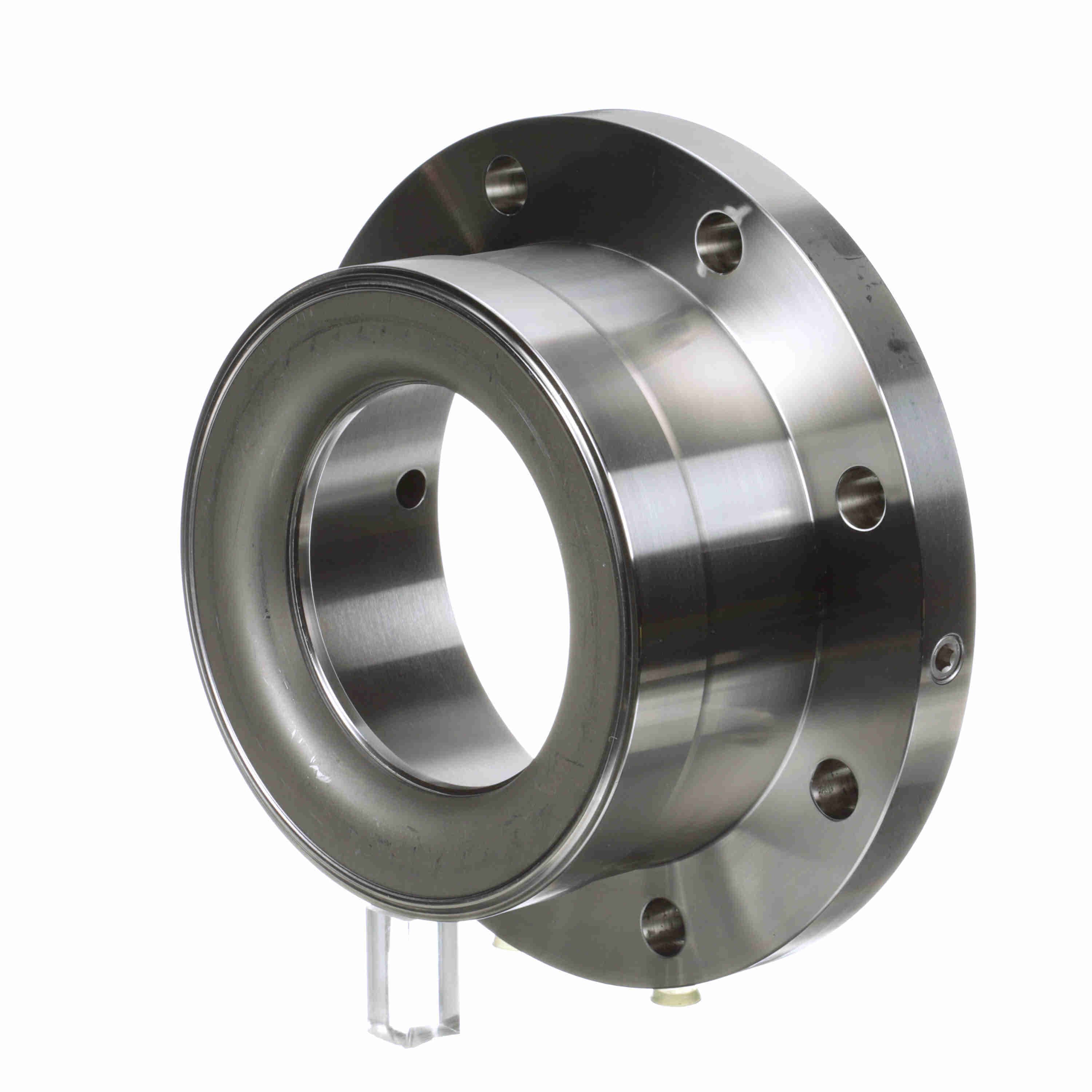

FAST COUPLING-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1960335 |
| Product Name | 3F EB SLEEVE |
| Brand | Kop-Flex |
| Weight | 15.645 lb |
| Package Length | 9.5 in |
| Package Width | 9.6 in |
| Package Height | 4.6 in |
| Bolt Circle | 8.125 in |
| Bolt Type | Exposed |
| Component Type | Standard Sleeve |
| Configuration | Gear Sleeve |
| Coupling Size | 3 |
| Coupling Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $1410.68 | — |
| Gear Coupling |
| Lube/Non-Lube | Lubricated |
| Measurement System | Imperial |
| Model | FASTS |
| Outside Diameter (in) | 9.4375 in |
| Sleeve Material | Steel |
| Sleeve Overall Length (in) | 3.65625 in |
| Sleeve Type | Flanged |
| Speed Max (rpm) | 6,800 rpm |
| Tooth Profile | Straight |
| Torque Rating (in-lb) | 101,000 in/lbs |
| HTC | 8483.90.8010 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-107901 |
| Part NumberiManufacturer catalog number | 1960335 |
| BrandiManufacturer or product brand | Kop-Flex |
| UPCiUniversal Product Code | 662384103113 |
| CategoryiCatalog classification | Couplings |
