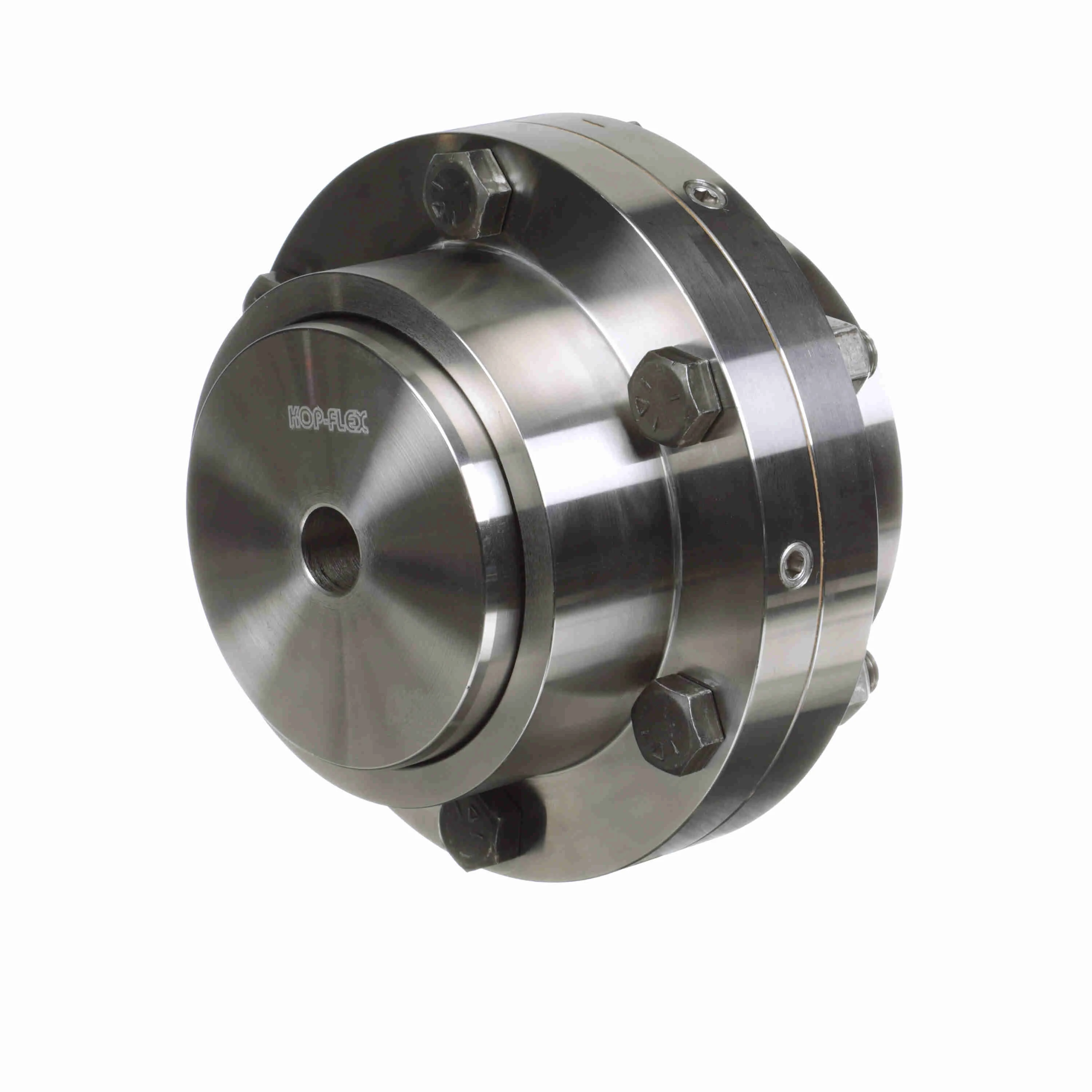

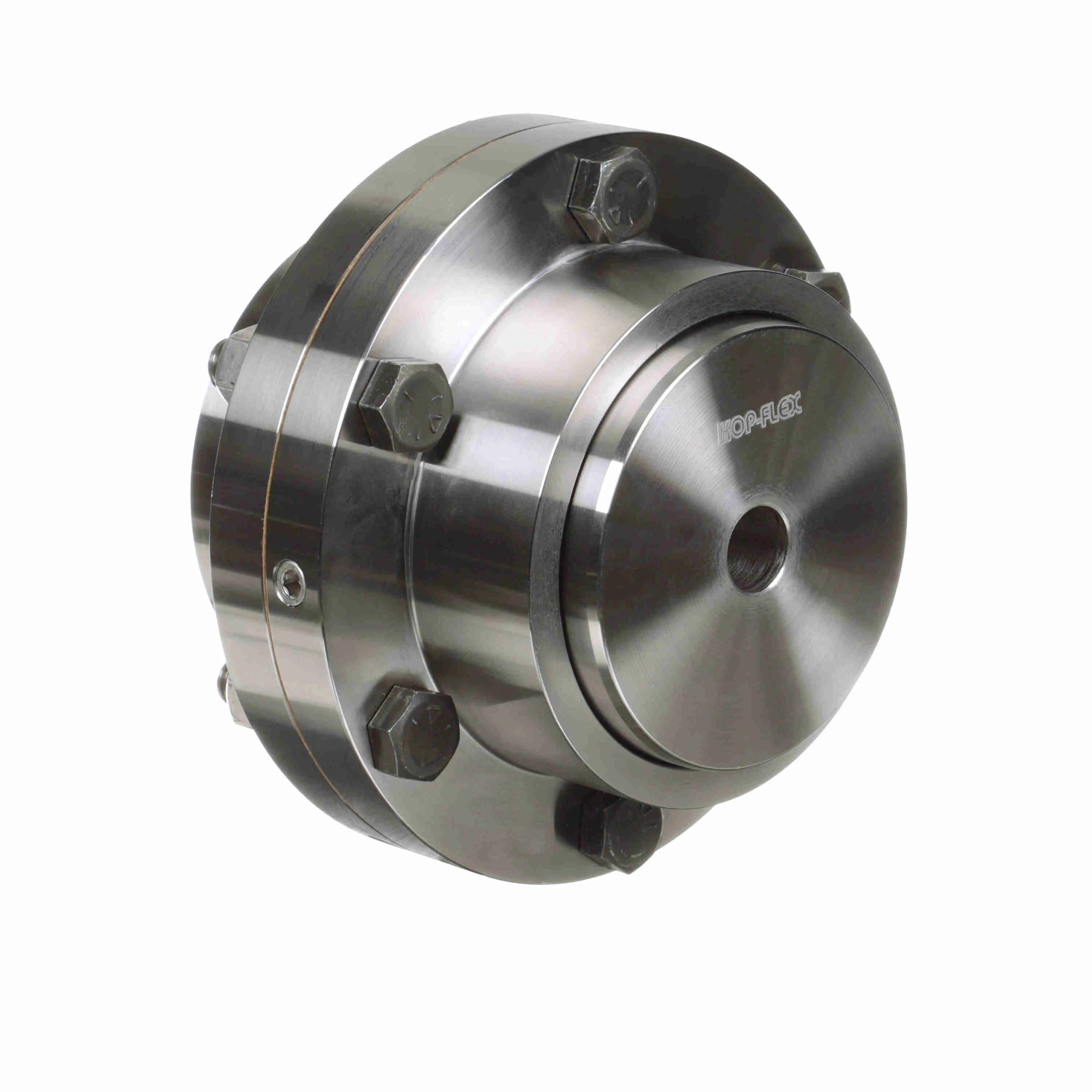

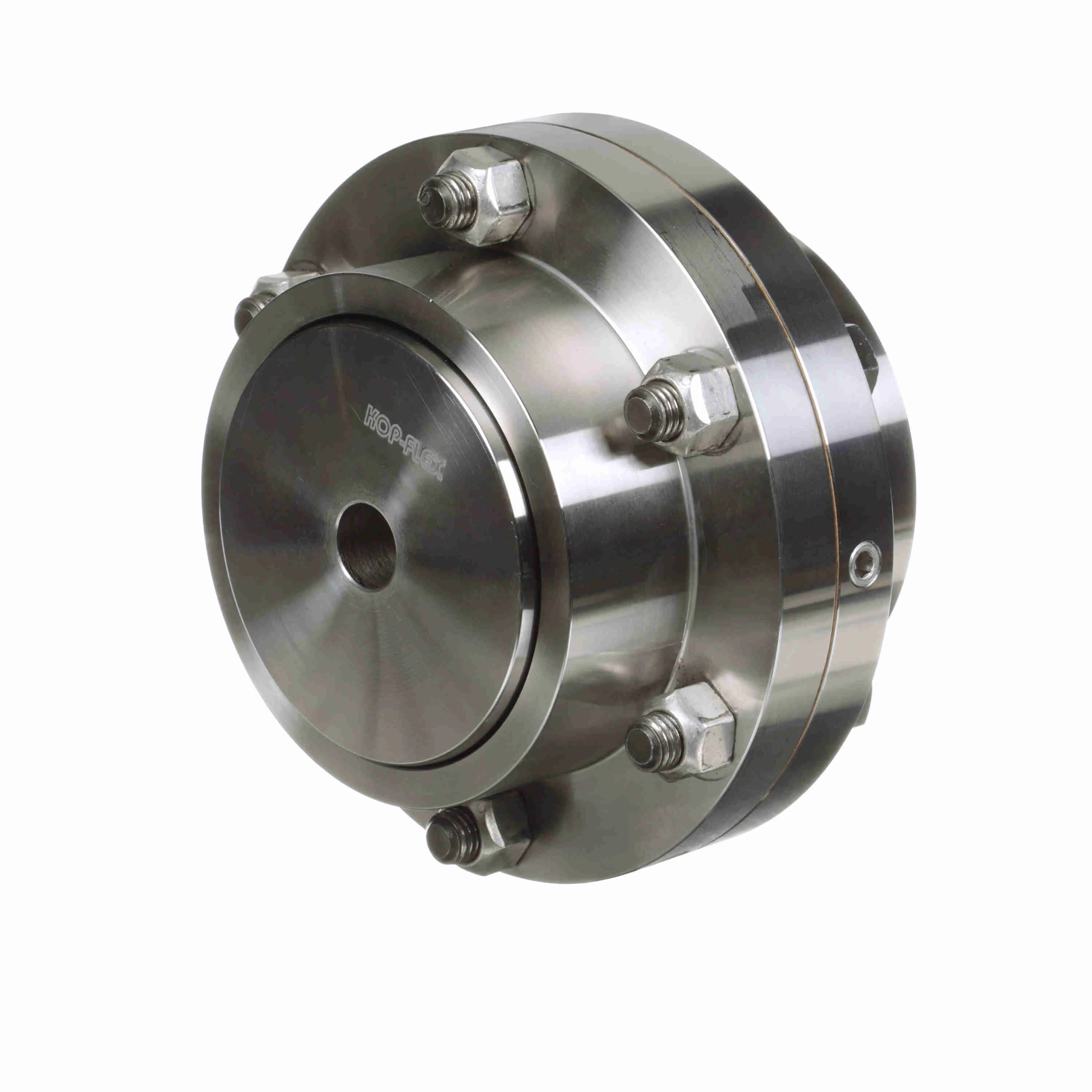

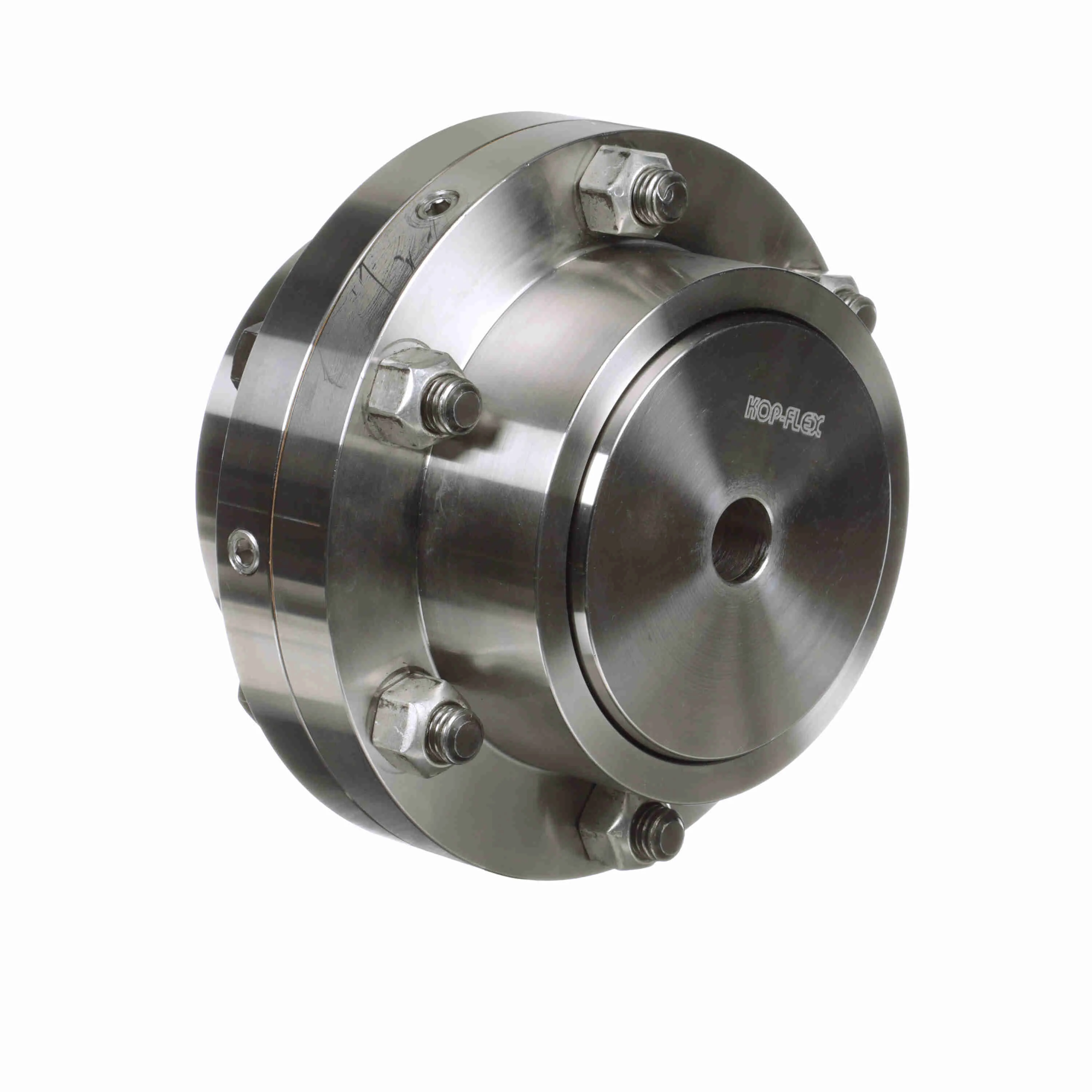

SERIES H PLUS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2274793 |
| Product Name | 2H EB FF |
| Brand | Kop-Flex |
| Material | Medium Carbon Steel |
| Weight | 32.12 lb |
| Bolt Circle | 5.875 in |
| Bolt Type | Exposed |
| Bore Size Max (in) | 2.75 in |
| Bore Type | Rough Bore |
| Compatible Bore Size [Min] (in) | 0.8125 in |
| Configuration | Full Flex |
| Coupling Size | 2 |
| Coupling Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $1404.54 | — |
| Gear Coupling |
| Fastener Quantity | 6 |
| Fastener Size | 1/2 x 2 1/4 |
| Length Through Bore (in) | 2.4375 in |
| Lube/Non-Lube | Lubricated |
| Measurement System | Imperial |
| Model Name | H1-7FF_Master |
| Outside Diameter (in) | 7 in |
| Overall Length (in) | 4.6875 in |
| Rating HP @ 100 RPM | 50 |
| Sleeve Type | Flanged |
| Speed Max (rpm) | 9,300 rpm |
| Style | Series H |
| Tooth Profile | Straight faced, Involute Stub Tooth |
| Torque [Max] (in-lb) | 63,000 in/lbs |
| Torque Rating (in-lb) | 31,500 in/lbs |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-108998 |
| Part NumberiManufacturer catalog number | 2274793 |
| BrandiManufacturer or product brand | Kop-Flex |
| UPCiUniversal Product Code | 662384140026 |
| CategoryiCatalog classification | Couplings |
