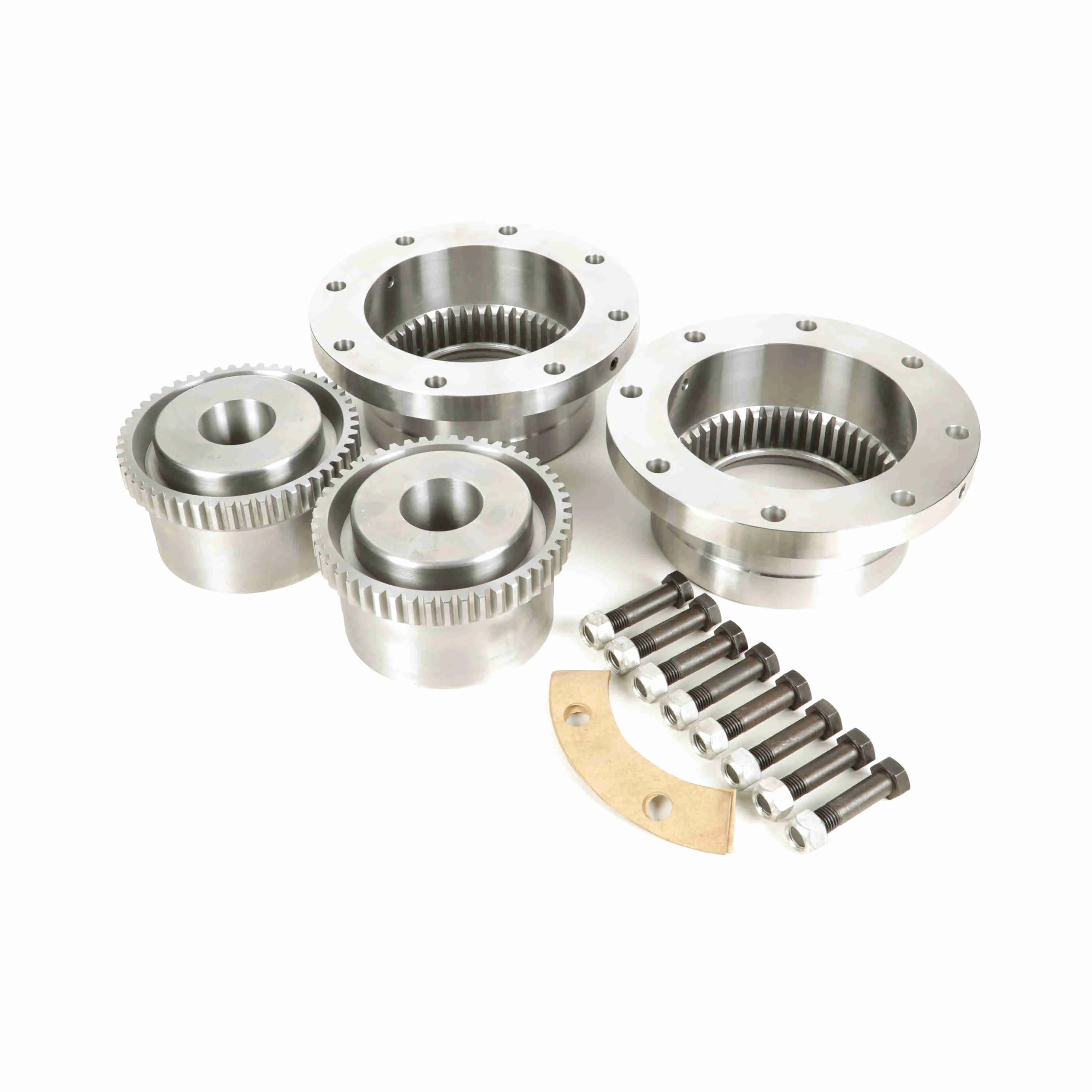

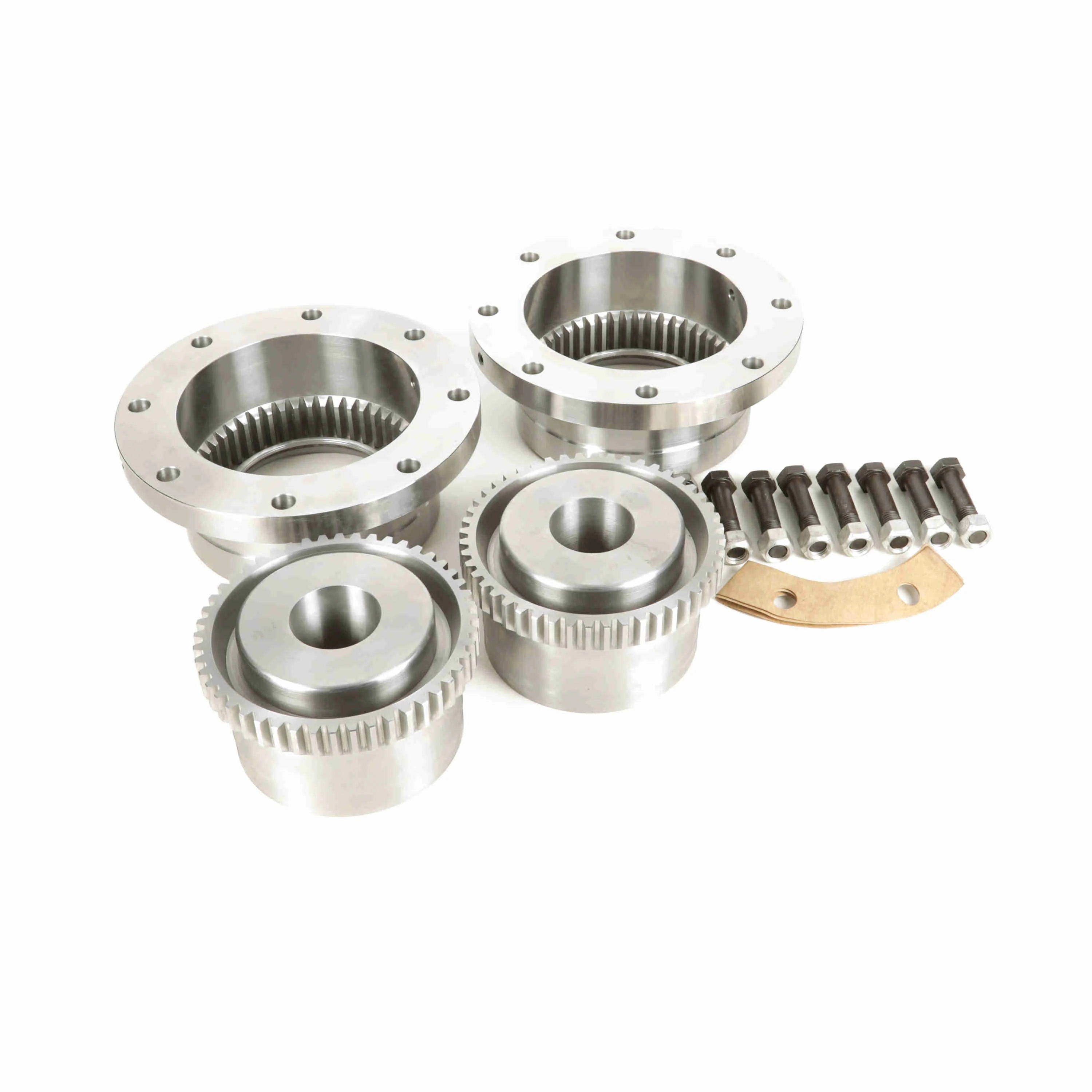

K-F FAST STANDARD
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2275717 |
| Product Name | 7F EB FF |
| Brand | Kop-Flex |
| Material | Medium Carbon Steel |
| Weight | 890.915 lb |
| Bolt Circle | 18.25 in |
| Bolt Type | Exposed |
| Bore Size Max (in) | 8 in |
| Bore Type | Rough Bore |
| Compatible Bore Size [Min] (in) | 3.5 in |
| Configuration | Full Flex |
| Coupling Size | 7 |
| Coupling Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $35960.79 | — |
| Gear Coupling |
| Fastener Quantity | 16 |
| Fastener Size | 1 x 3 5/8 |
| Length Through Bore (in) | 8.6875 in |
| Lube/Non-Lube | Lubricated |
| Measurement System | Imperial |
| Model Name | 1-5-7_FF |
| Outside Diameter (in) | 20.75 in |
| Overall Length (in) | 17.3125 in |
| Rating HP @ 100 RPM | 1,840 |
| Sleeve Type | Flanged |
| Speed Max (rpm) | 3,000 rpm |
| Style | FASTS |
| Tooth Profile | Straight Faced Involute Hub tooth |
| Torque [Max] (in-lb) | 2,320,000 in/lbs |
| Torque Rating (in-lb) | 1,160,000 in/lbs |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-109084 |
| Part NumberiManufacturer catalog number | 2275717 |
| BrandiManufacturer or product brand | Kop-Flex |
| UPCiUniversal Product Code | 662384010183 |
| CategoryiCatalog classification | Couplings |
