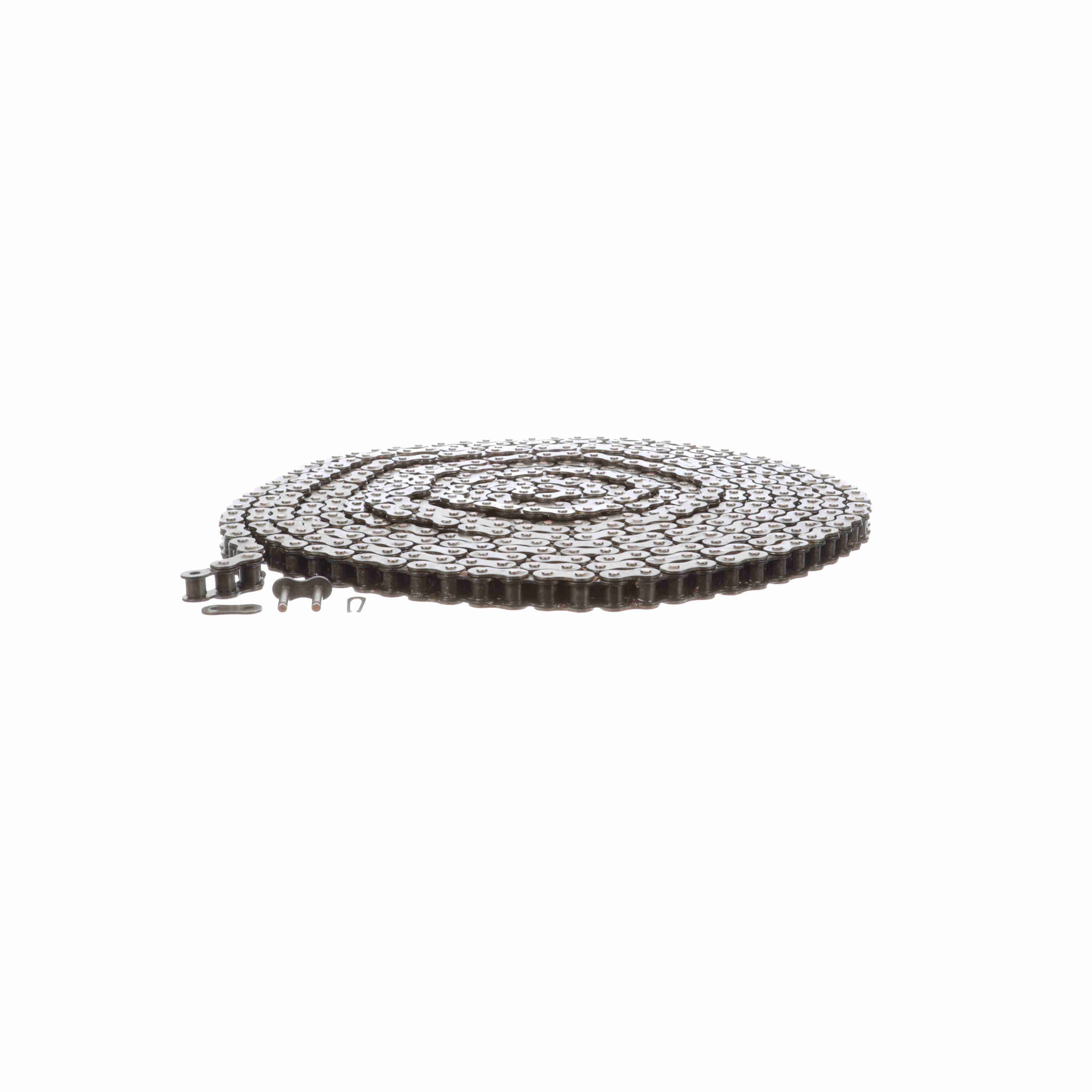

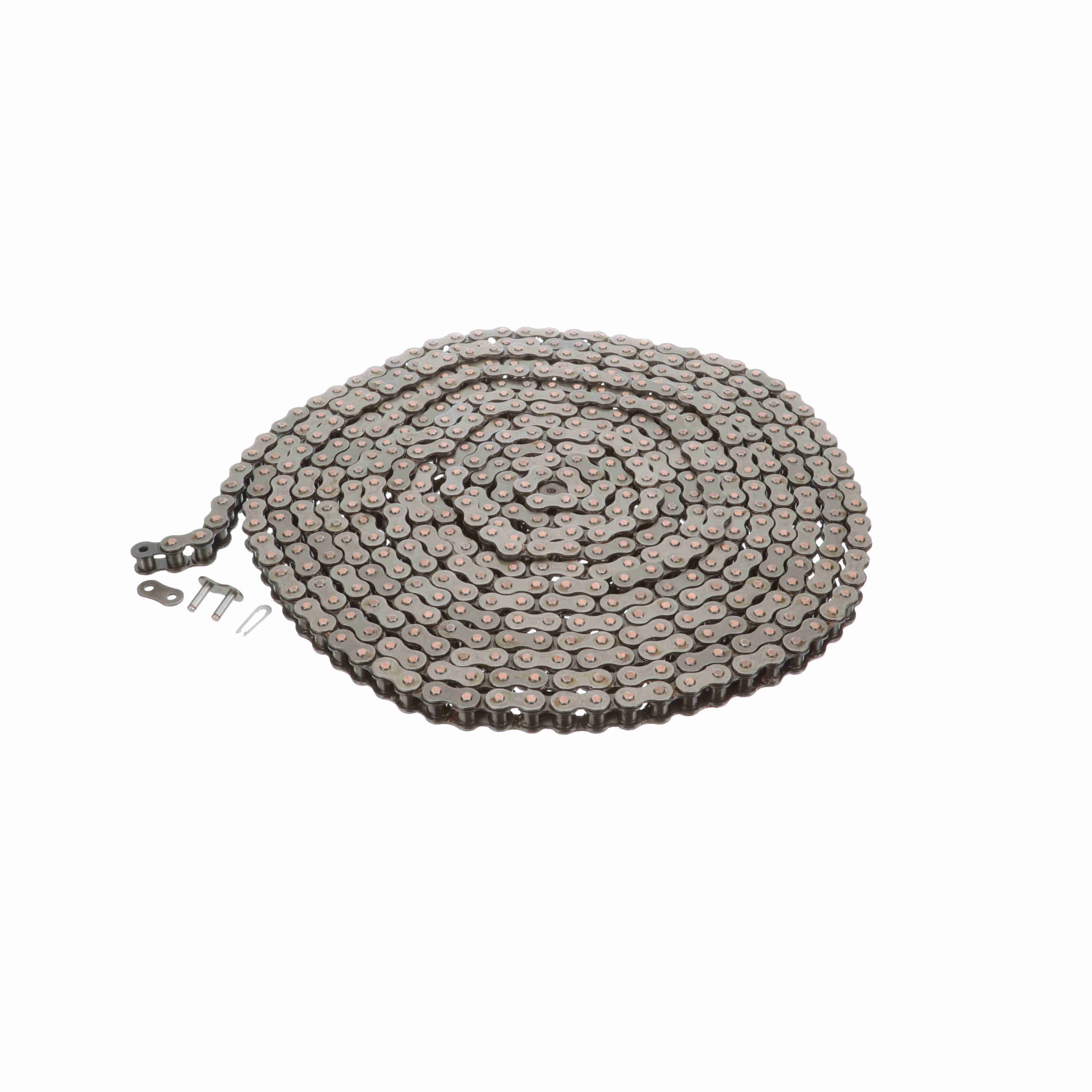

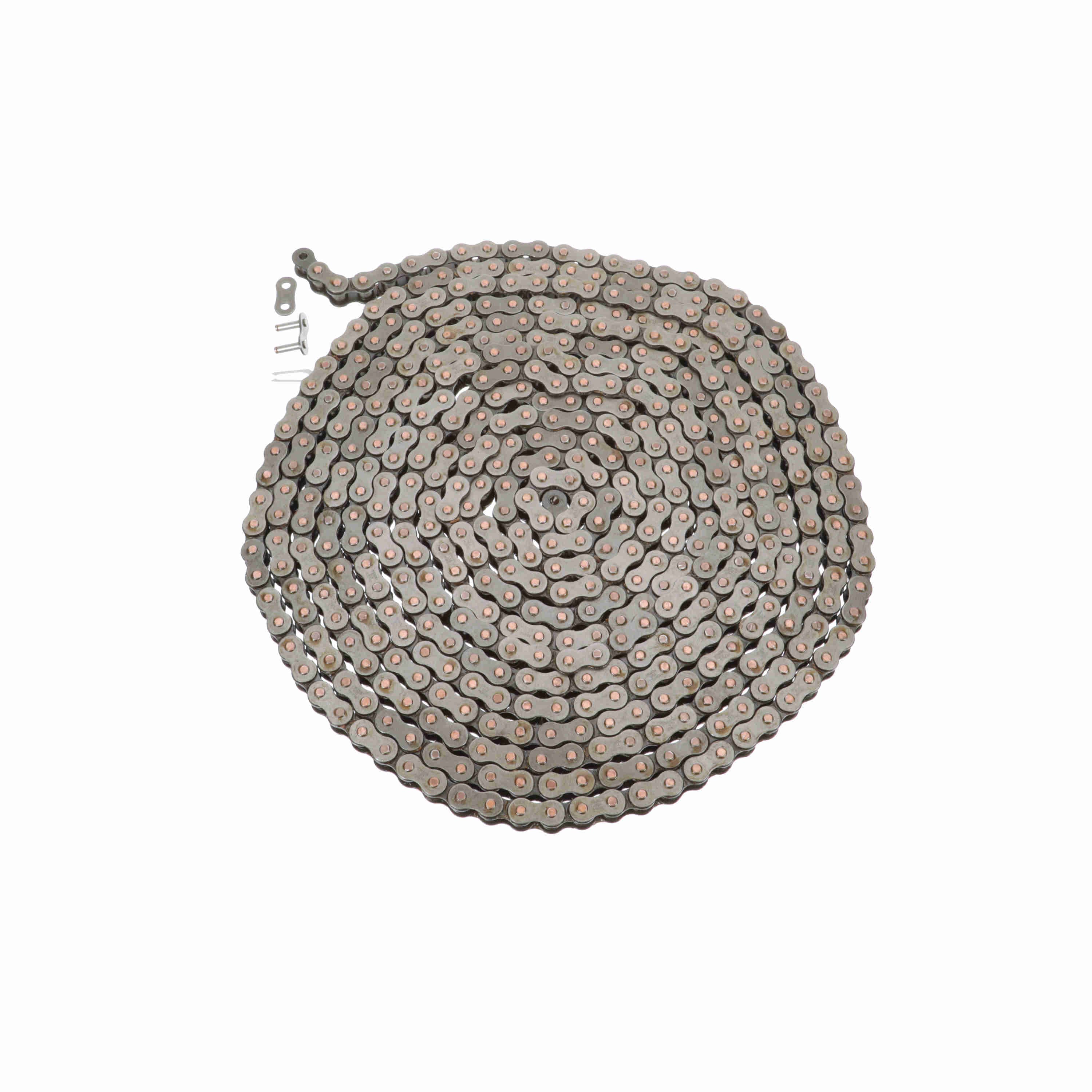

MORSE BRIT. STD. ROLLER CHAIN-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2361103 |
| Product Name | 10B-1 25 FT |
| Brand | Morse |
| Material | Steel |
| Weight | 0.6502 lb |
| Package Length | 15.2 in |
| Package Width | 15.1 in |
| Package Height | 1.2 in |
| Roller Width (mm) | 9.65 mm |
| Number of Strands/Width | 1 |
| Chain Family | 10 |
| Roller Diameter (mm) | 10.16 mm |
| Chain Construction |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $72.04 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Cottered |
| Pin Diameter (mm) | 5.08 mm |
| Chain Pitch (in) | 0.625 in |
| Chain Type | British Standard |
| Product Type | Roller Chain |
| Roller Diameter (in) | 0.4 in |
| Pin Diameter (in) | 0.2 in |
| Coating | Uncoated |
| Roller Width (in) | 0.3799 in |
| Measurement System | Metric |
| Standard Met | ANSI B29.1 |
| Inside Plate Height (in) | 0.582677165354331 in |
| Base Catalog No | 10B-1 |
| Plate Thickness (in) | 0.523 in |
| Total Length (ft) | 25 ft |
| Connecting Link | Spring Clip |
| Pin Length (in) | 0.8071 in |
| Width Over Pins/Total Width (in) | 0.807086614173228 in |
| HTC | 7315.11.0060 |
| Country of Origin | China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-110106 |
| Part NumberiManufacturer catalog number | 2361103 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662460388250 |
| CategoryiCatalog classification | Roller Chain |
