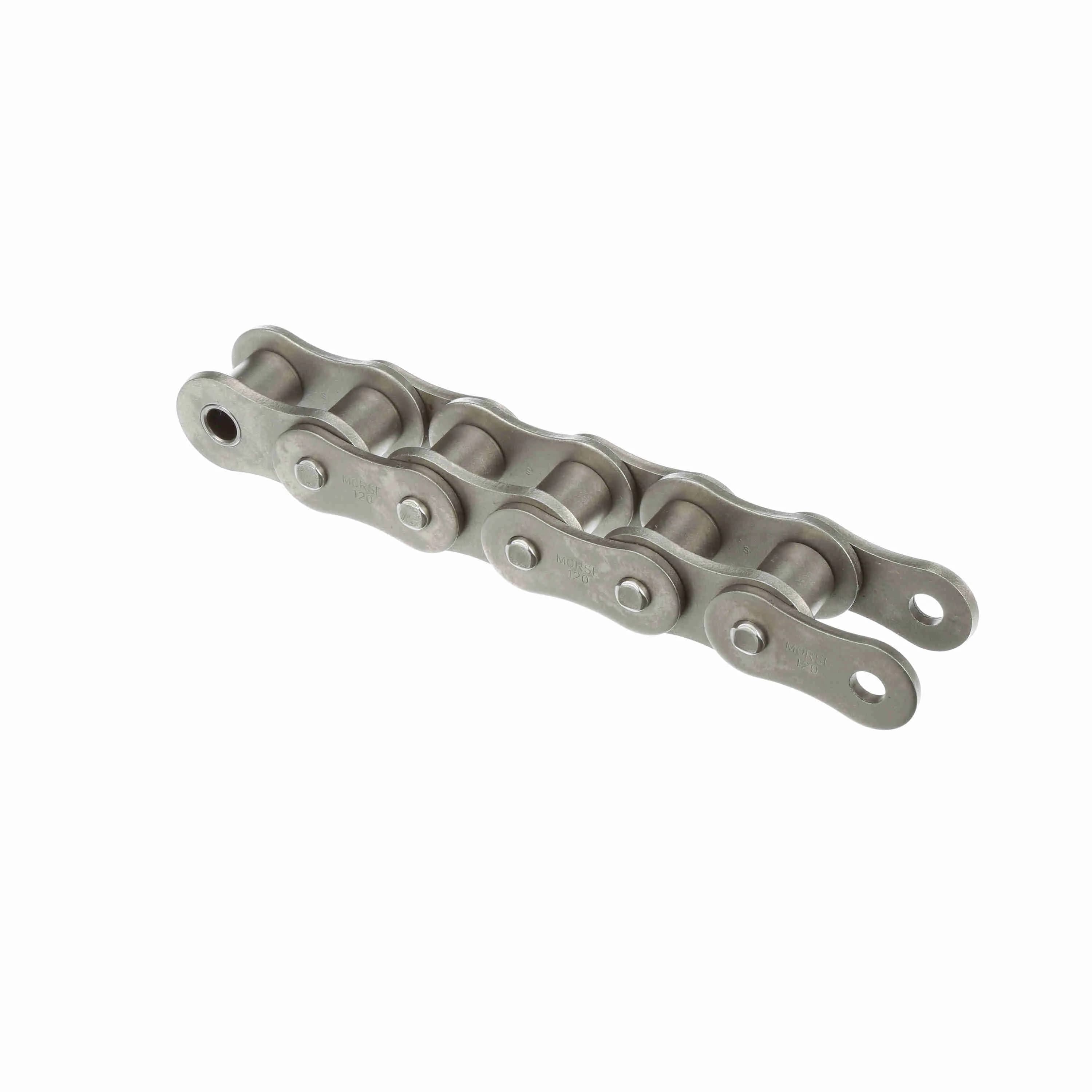

MORSE BRIT. STD. ROLLER CHAIN-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2361194 |
| Product Name | 20B-1 10 FT |
| Brand | Morse |
| Material | Steel |
| Weight | 2.54 lb |
| Number of Strands/Width | 1 |
| Roller Width (mm) | 19.56 mm |
| Chain Family | 20 |
| Chain Construction | Riveted |
| Roller Diameter (mm) | 19.05 mm |
| Pin Diameter (mm) | 10.19 mm |
| Product Type | Roller Chain |
| Chain Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $379.97 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| British Standard |
| Chain Pitch (in) | 1.25 in |
| Coating | Uncoated |
| Roller Diameter (in) | 0.75 in |
| Roller Width (in) | 0.77 in |
| Pin Diameter (in) | 0.4011 in |
| Measurement System | Metric |
| Standard Met | ANSI B29.1 |
| Pin Length (in) | 1.8346 in |
| Inside Plate Height (in) | 1.03543307086614 in |
| Total Length (ft) | 10 ft |
| Width Over Pins/Total Width (in) | 1.7165 in |
| Base Catalog No | 20B-1 |
| Connecting Link | Spring Clip |
| Plate Thickness (in) | 1.142 in |
| HTC | 7315.11.0060 |
| Country of Origin | China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-110113 |
| Part NumberiManufacturer catalog number | 2361194 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662460388571 |
| CategoryiCatalog classification | Roller Chain |
