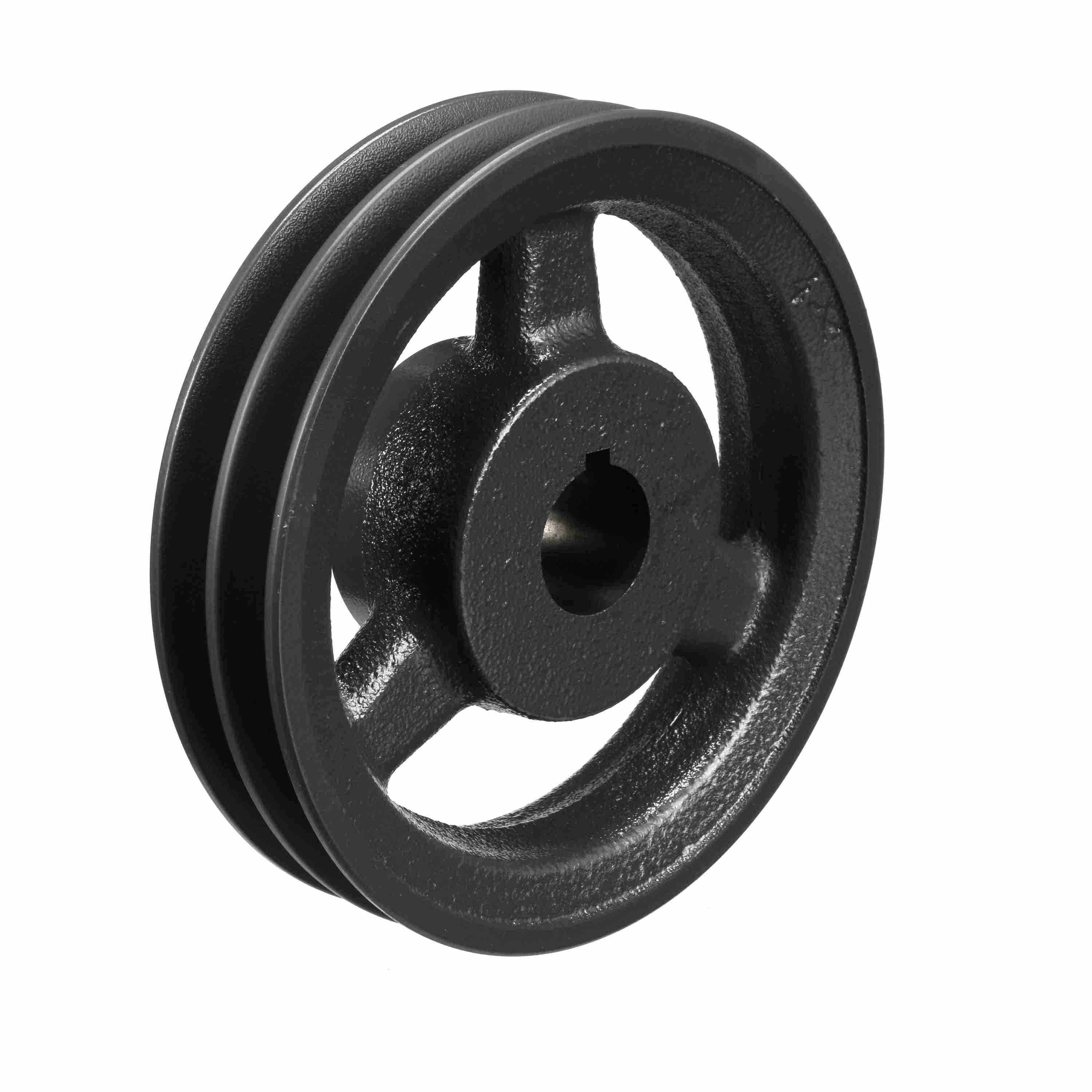

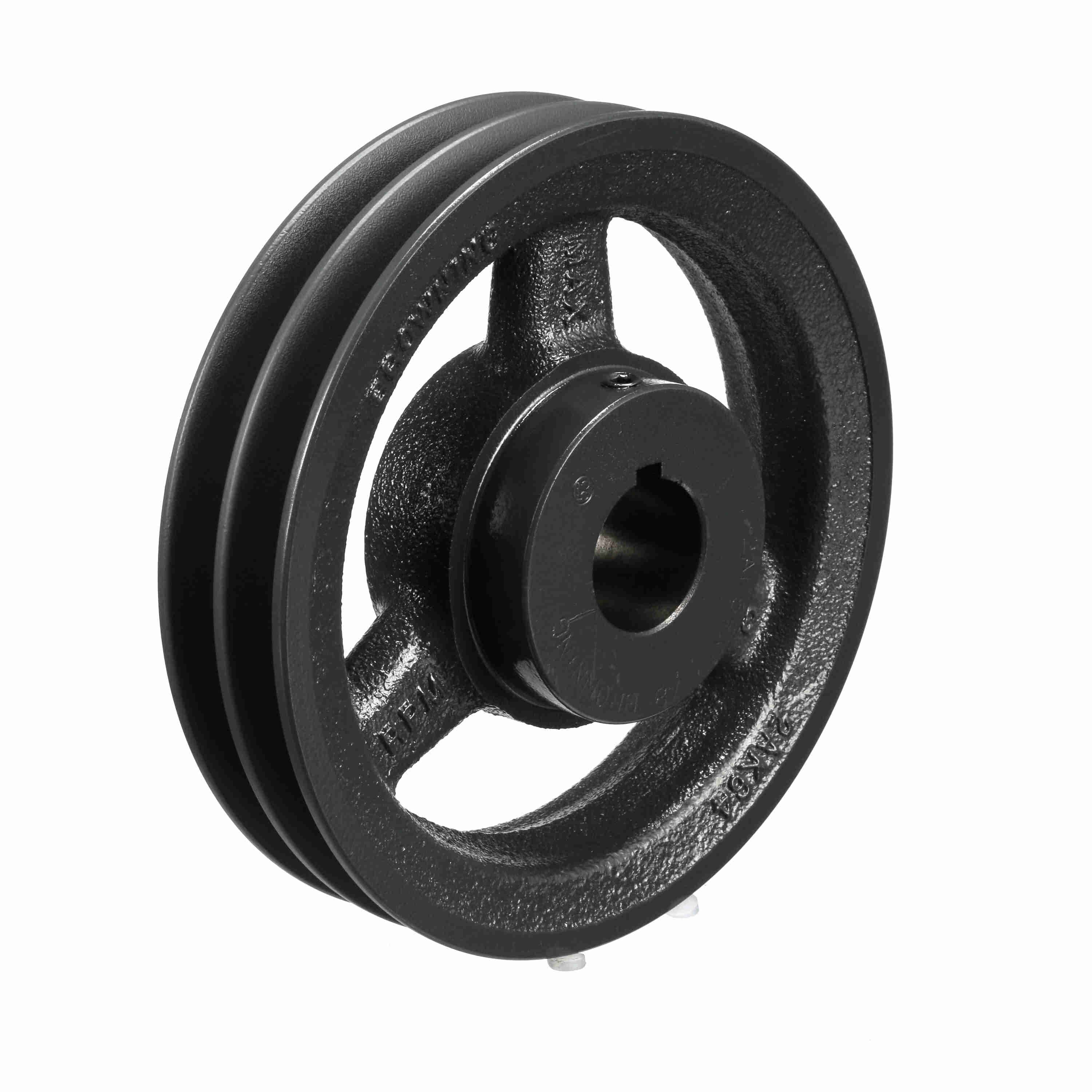

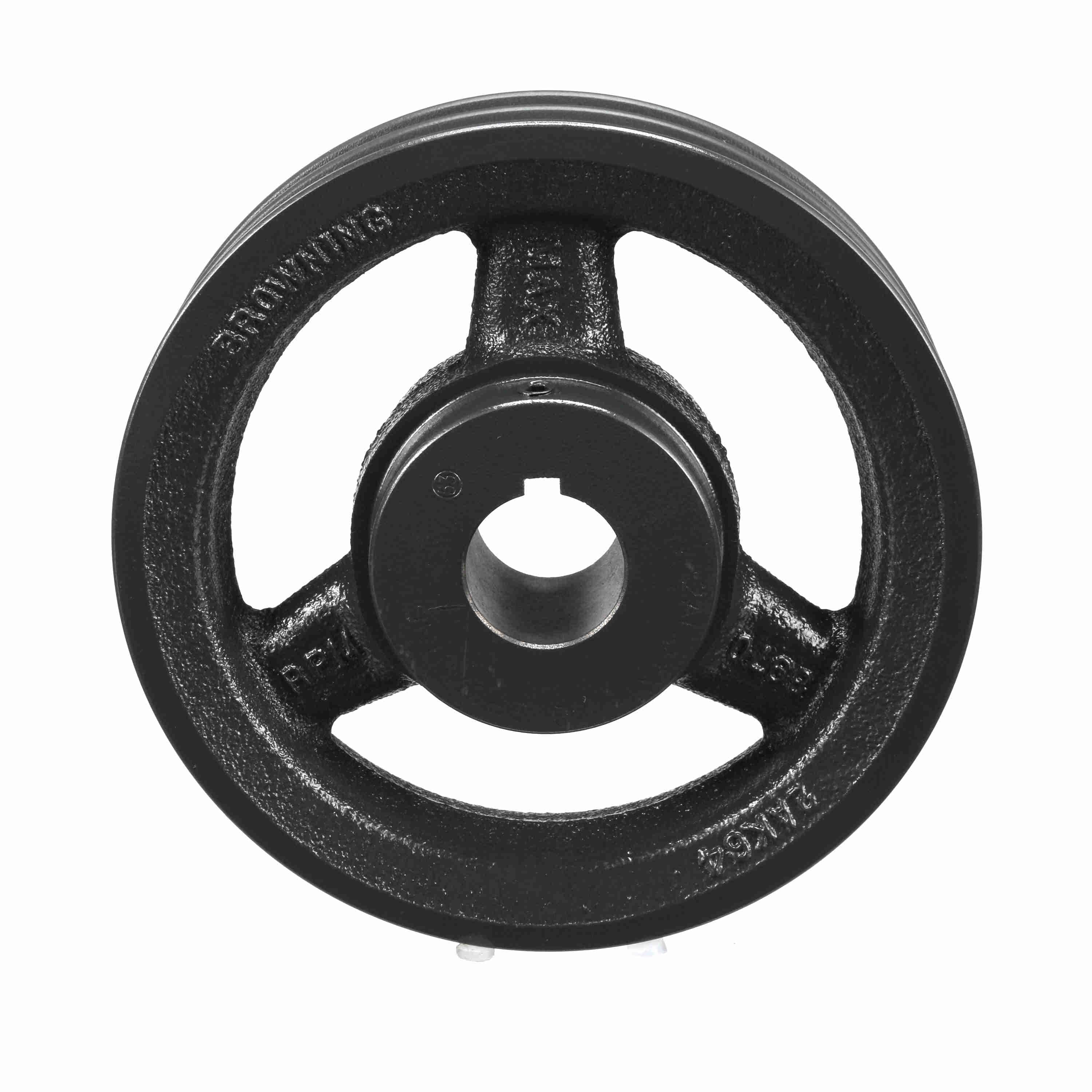

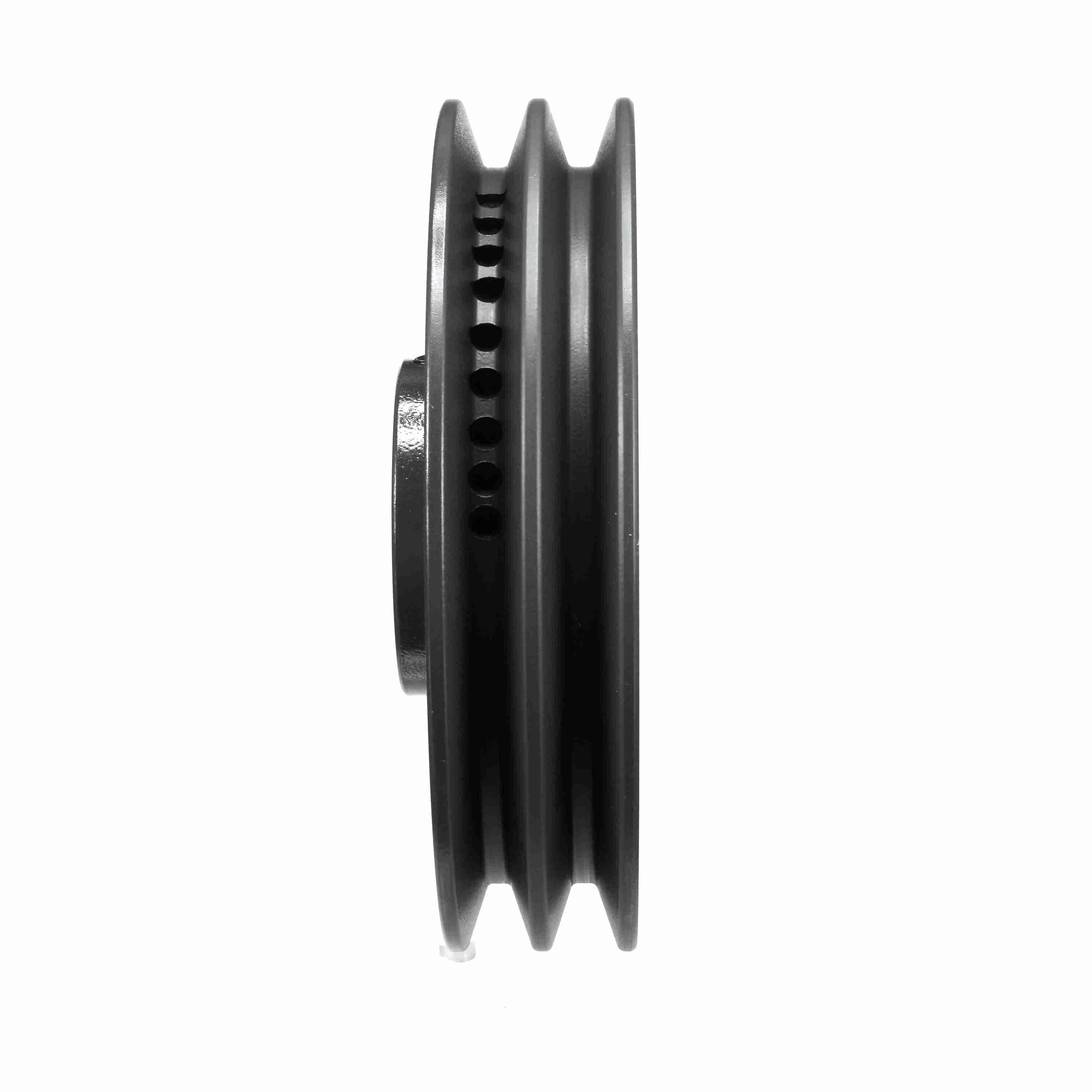

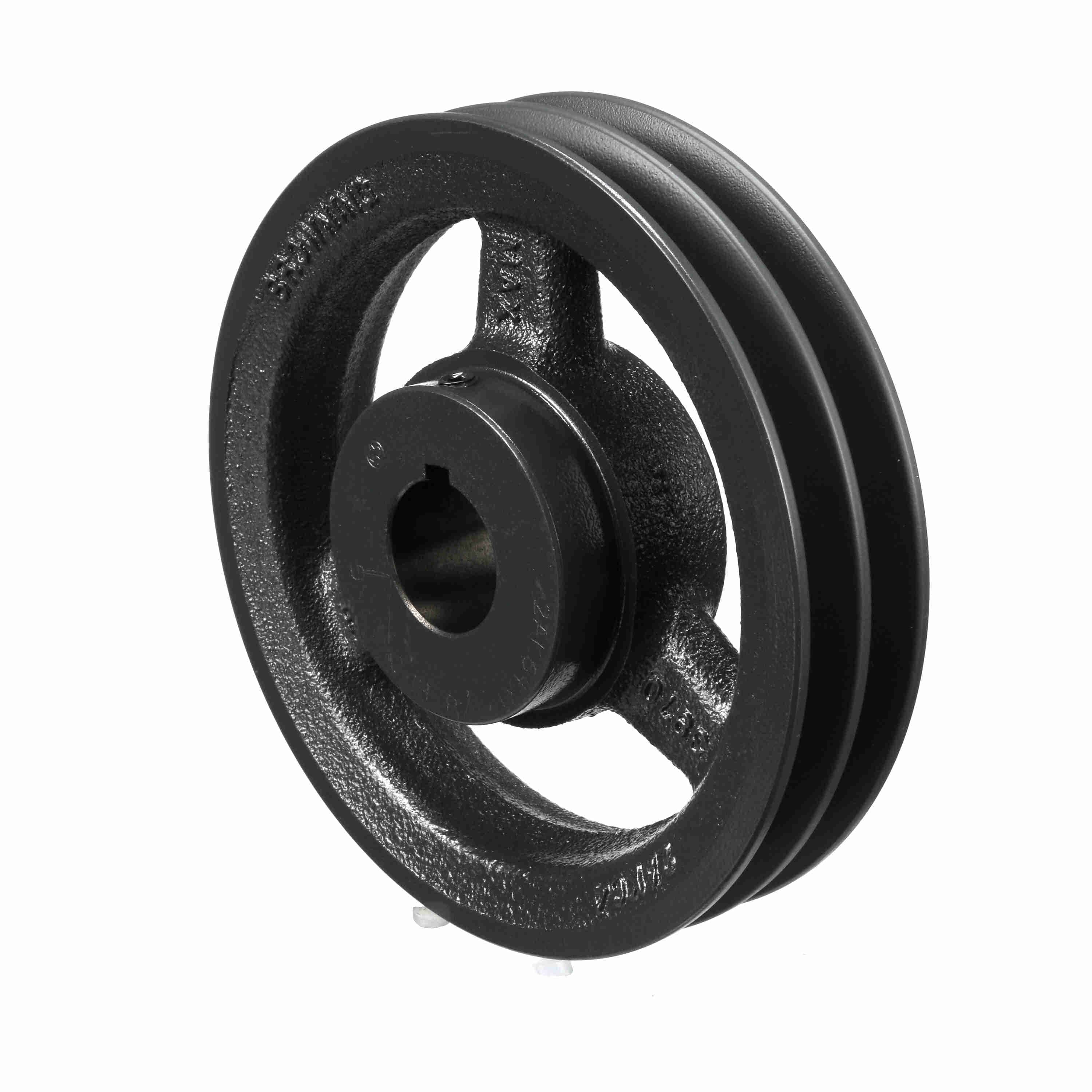

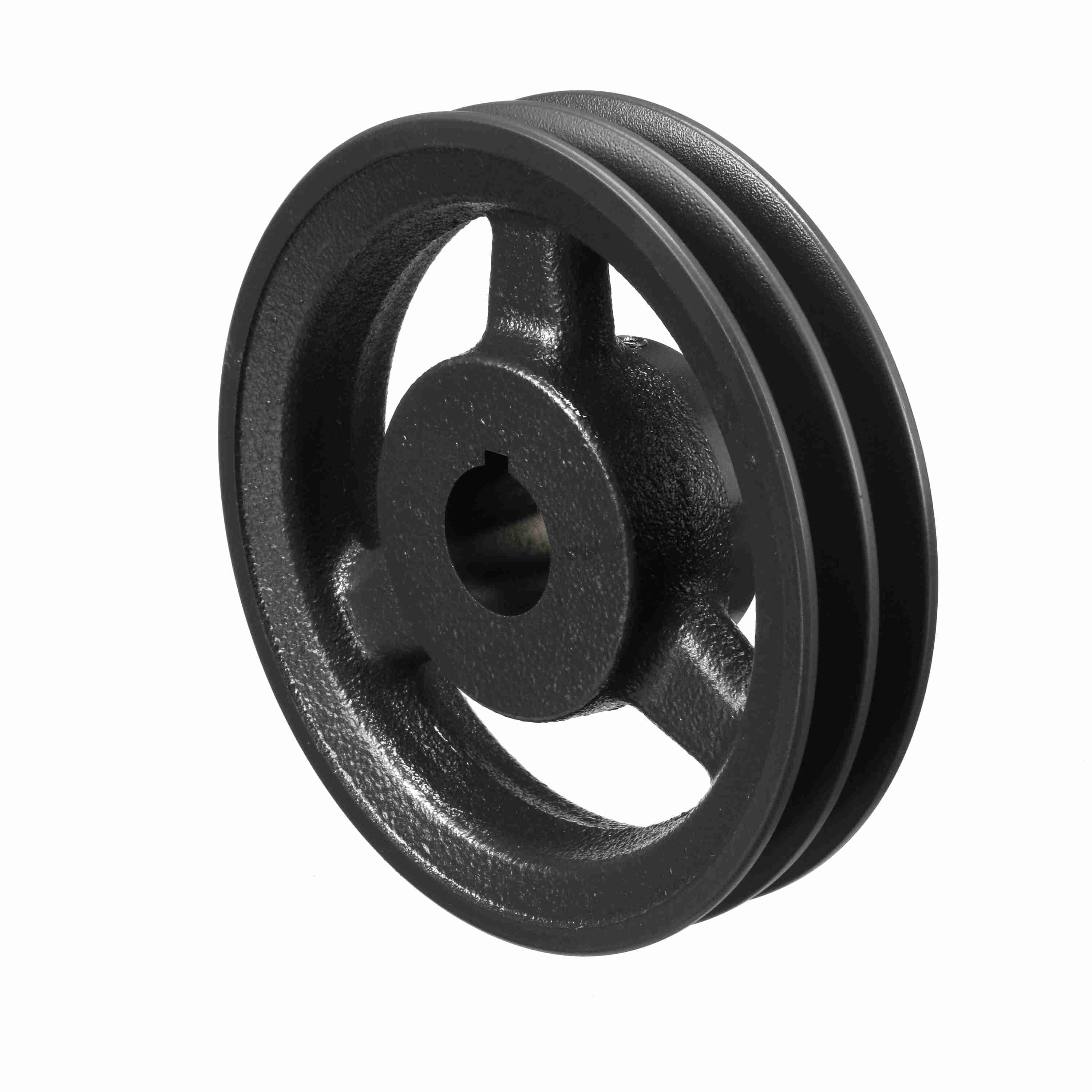

FHP CI F/B SHEAVES
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3195492 |
| Product Name | 2AK64X 1 1/8 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 4.955 lb |
| Package Length | 7.5 in |
| Package Width | 7.5 in |
| Package Height | 1.9 in |
| Pitch Diameter (A) | 6.2 |
| Datum (3L) | 5.66 |
| Number of Grooves | 2 |
| Outside Diameter (in) | 6.25 in |
| Bore (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $552.71 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 1.125 in |
| Product Type | FHP - Finished Bore |
| Belt Section | 4L or A, 3L |
| Bore Type | Finished with Keyway and SS |
| Keyway Size | .250 |
| Set Screw Tightening Torque (in-lb) | 165 |
| Set Screw Thread | 5/16-18UNC-3AX3/8 |
| HTC | 8483.50.9040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-111970 |
| Part NumberiManufacturer catalog number | 3195492 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289591916 |
| CategoryiCatalog classification | FHP Sheaves |
