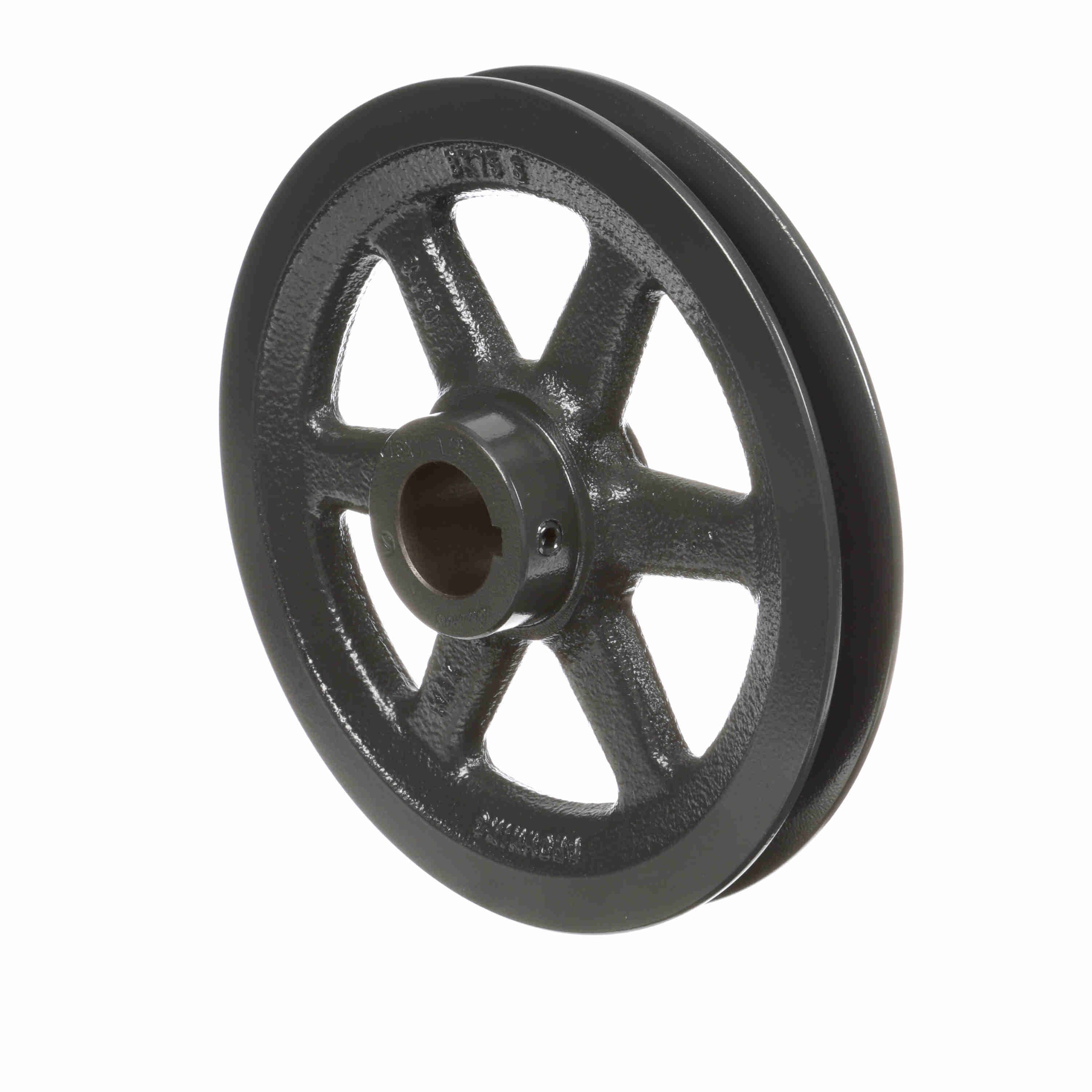

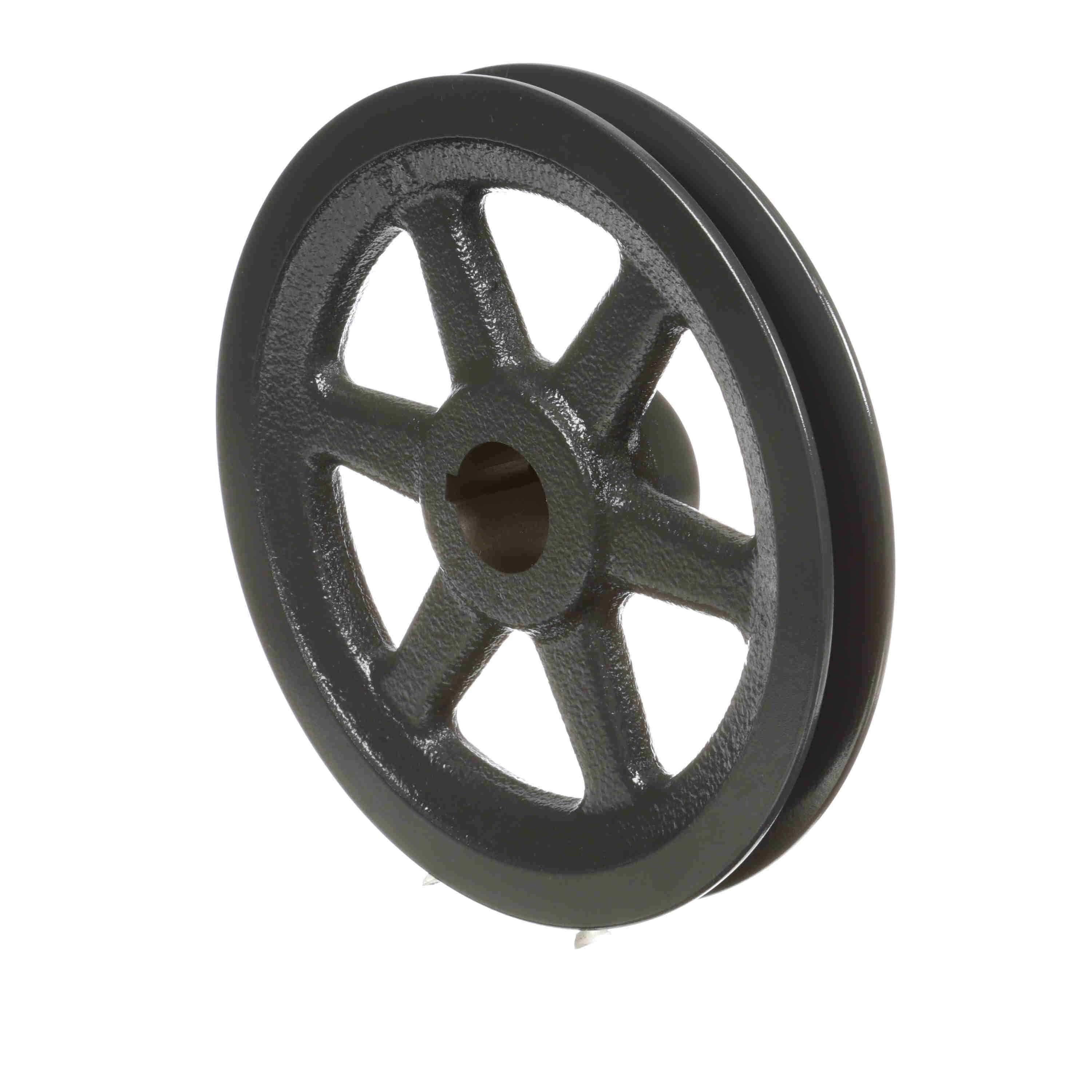

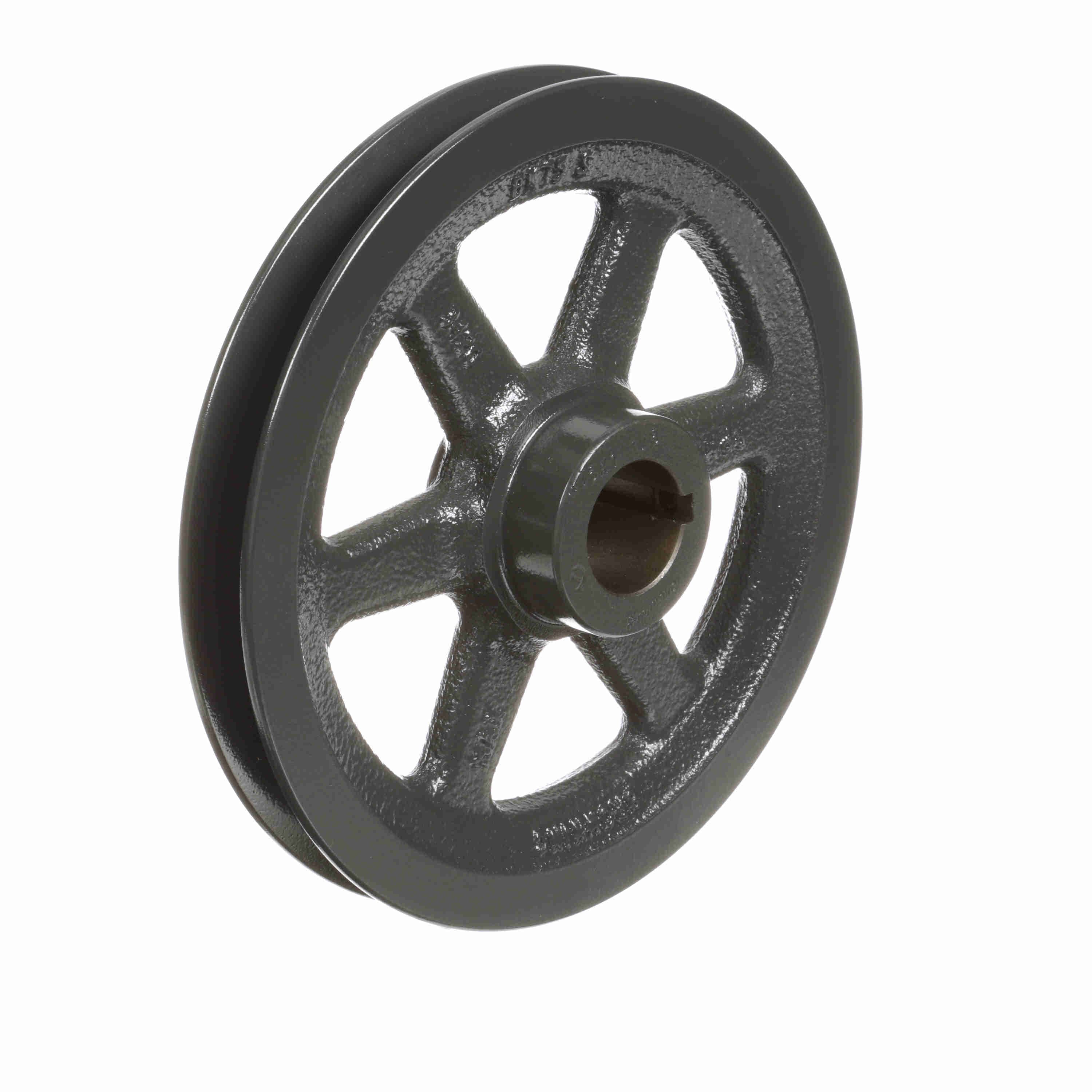

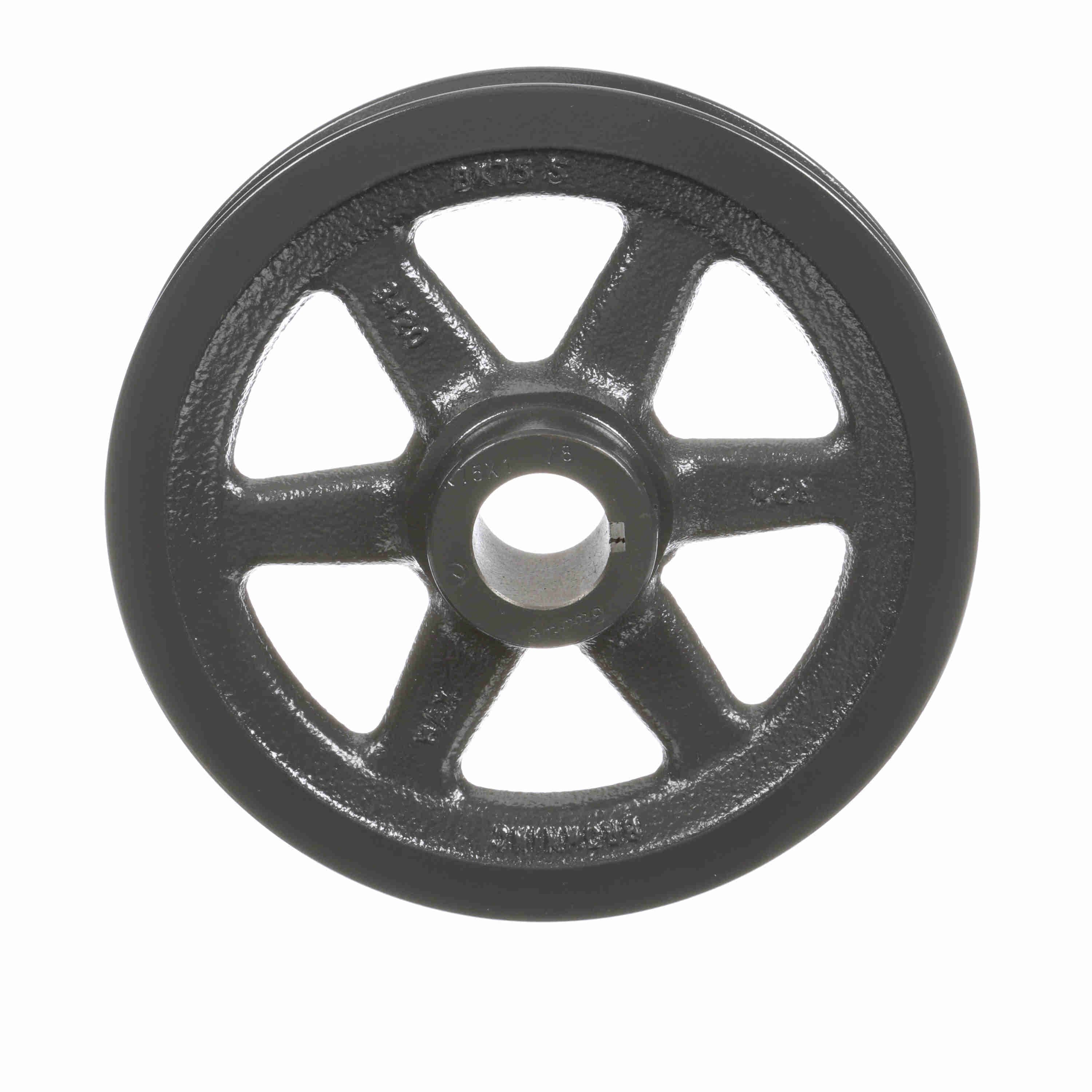

FHP CI F/B SHEAVES
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3195617 |
| Product Name | BK75X 1 1/8 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 4.21 lb |
| Package Length | 8.4 in |
| Package Width | 8.3 in |
| Package Height | 1.6 in |
| Outside Diameter (in) | 7.25 in |
| Pitch Diameter (A) | 6.7 |
| Number of Grooves | 1 |
| Model Name | BK_Sheave_Master2 |
| Pitch Diameter (B) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $376.17 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 7.2 |
| Bore (in) | 1.125 in |
| Belt Section | 4L or A, 5L or B |
| Product Type | FHP - Finished Bore |
| Bore Type | Finished with Keyway and SS |
| Keyway Size | .250 |
| Set Screw Tightening Torque (in-lb) | 90 |
| Set Screw Thread | 5/16-18UNC-3AX1/4 |
| HTC | 8483.50.9040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-111981 |
| Part NumberiManufacturer catalog number | 3195617 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289591473 |
| CategoryiCatalog classification | FHP Sheaves |
