M SERIES CLUTCH
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 639104 |

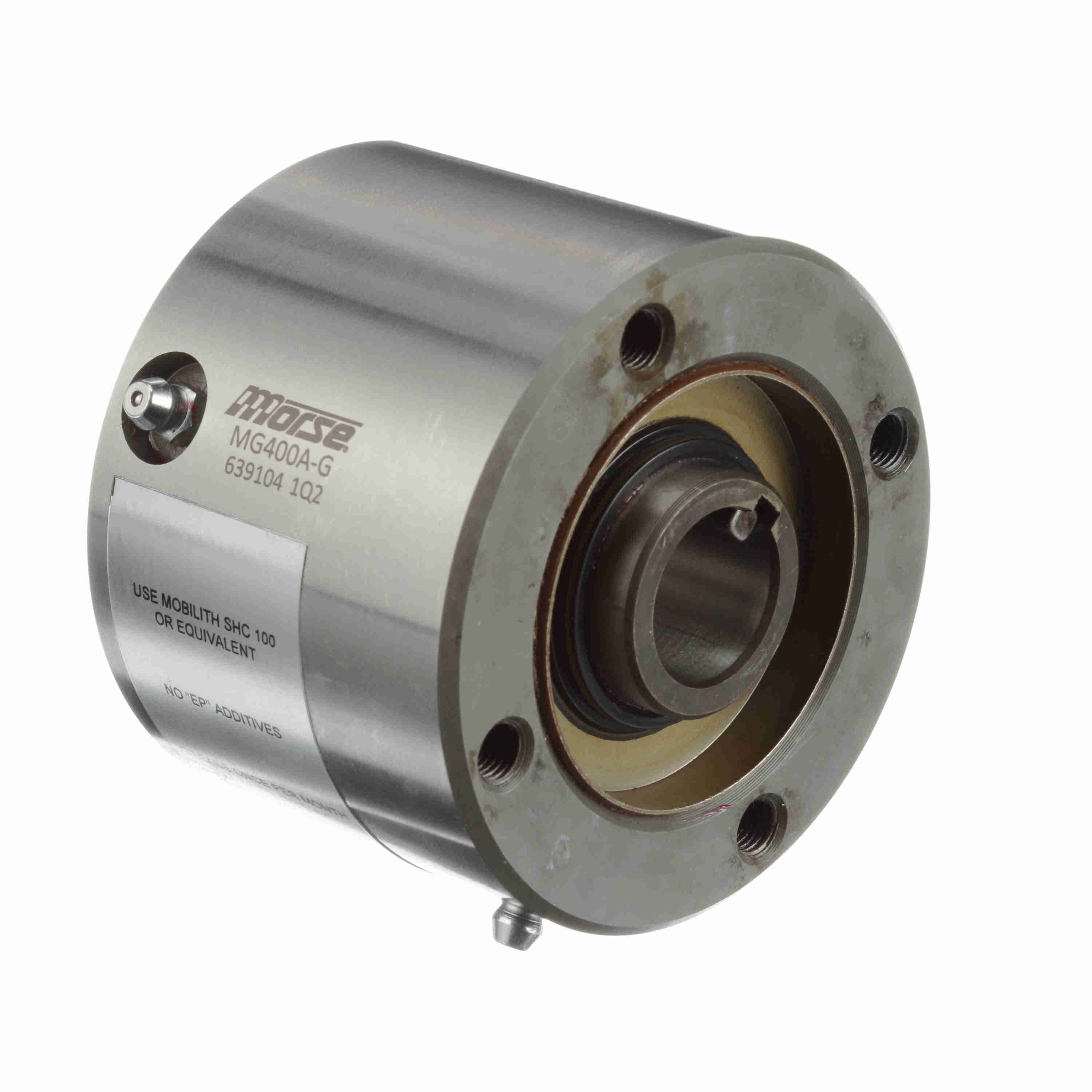

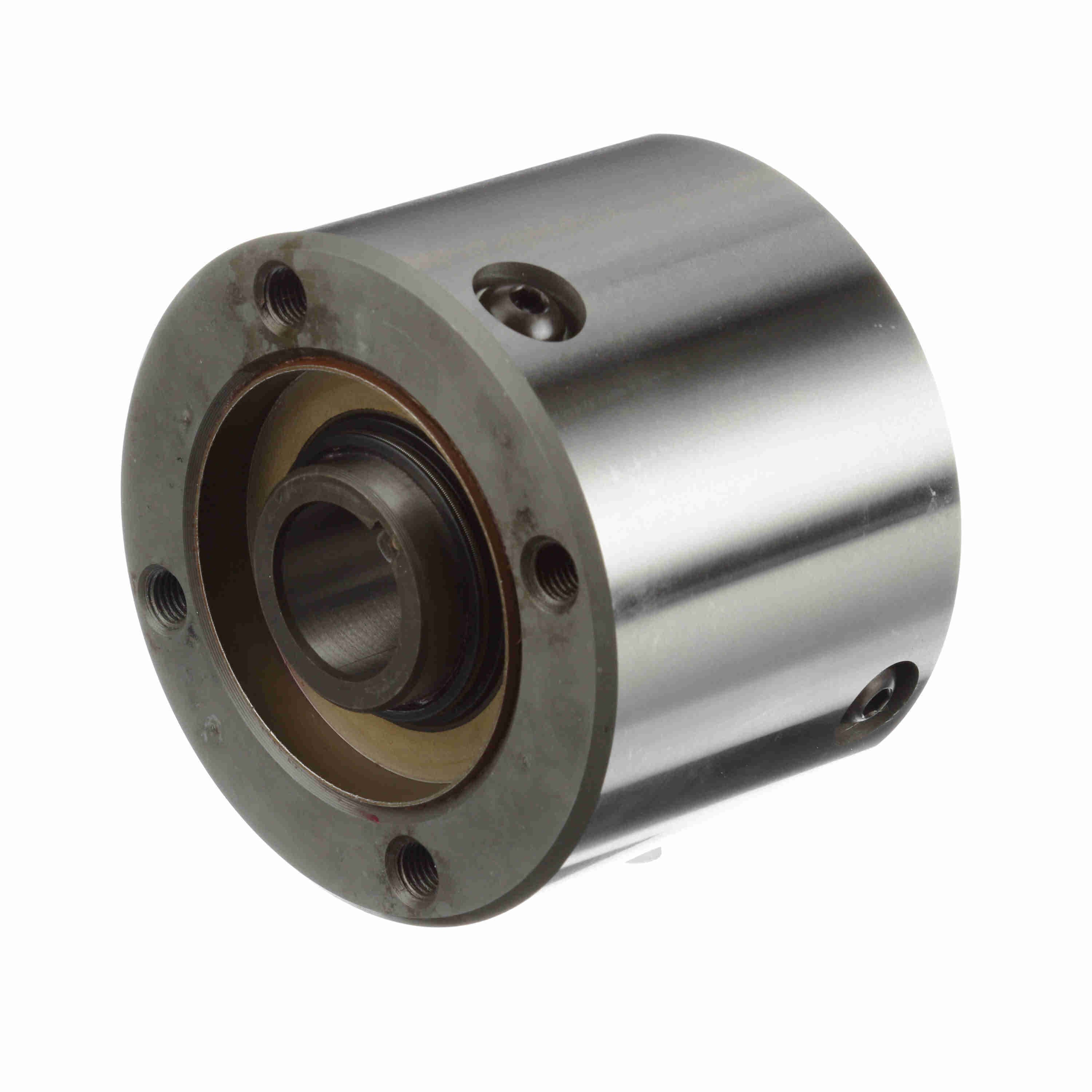

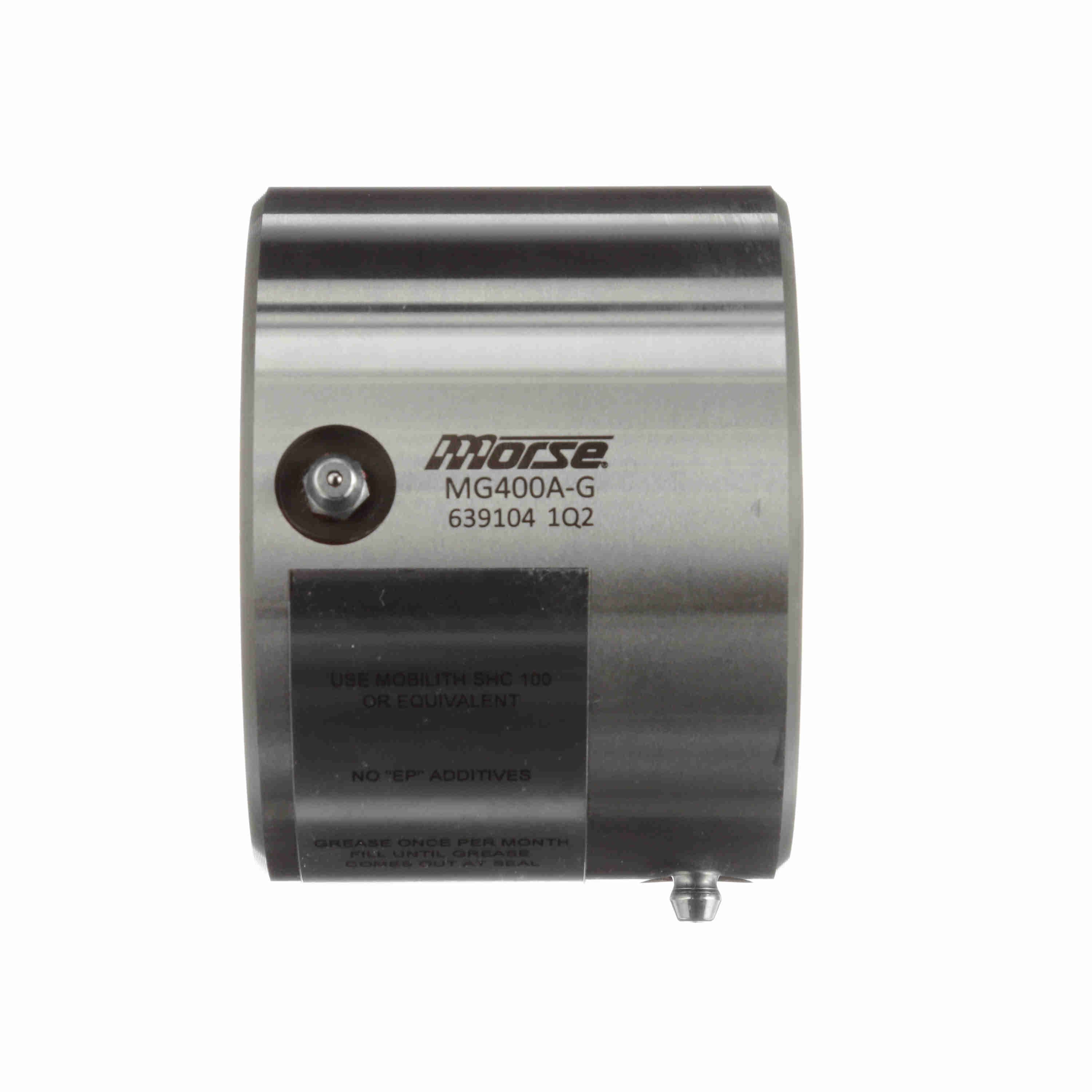

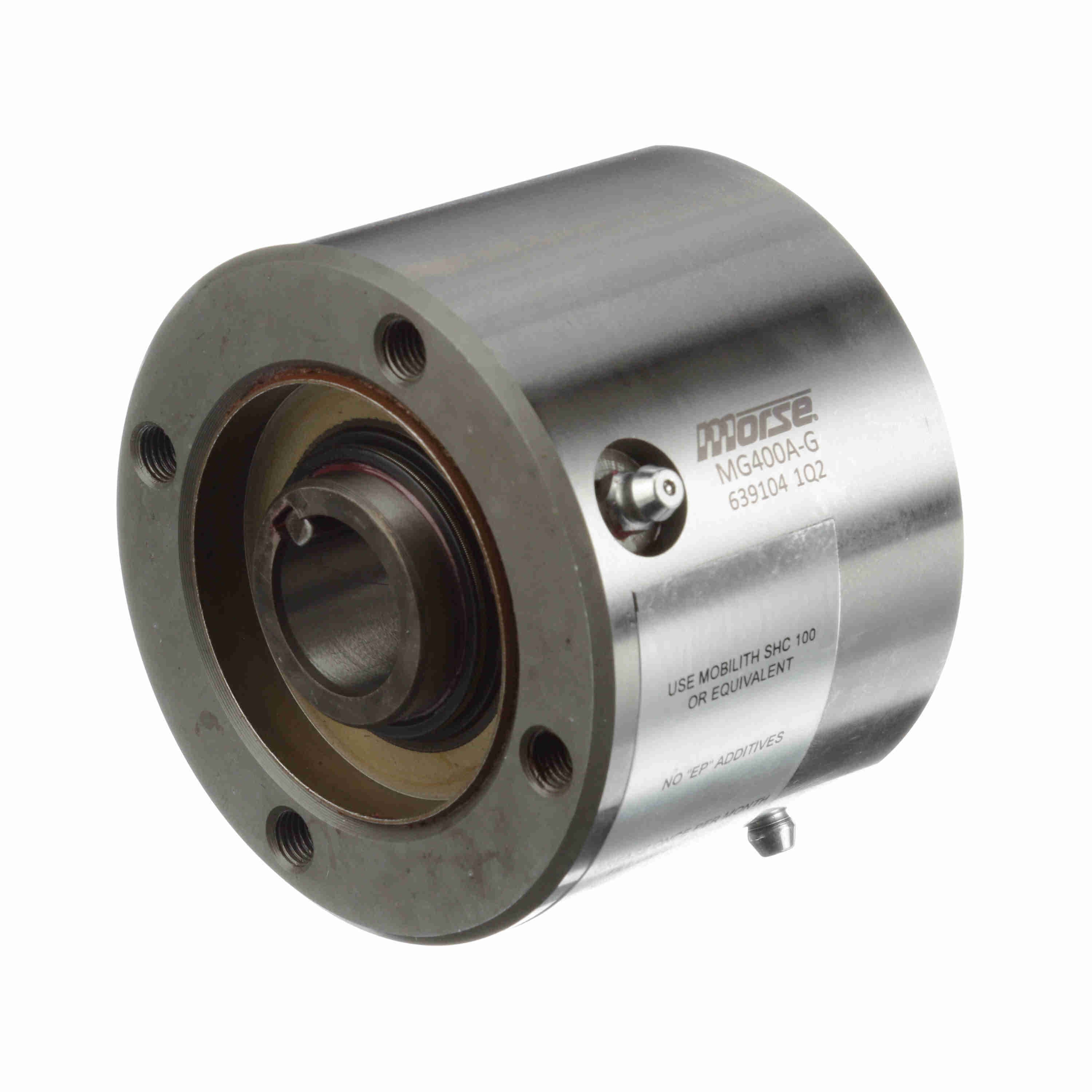

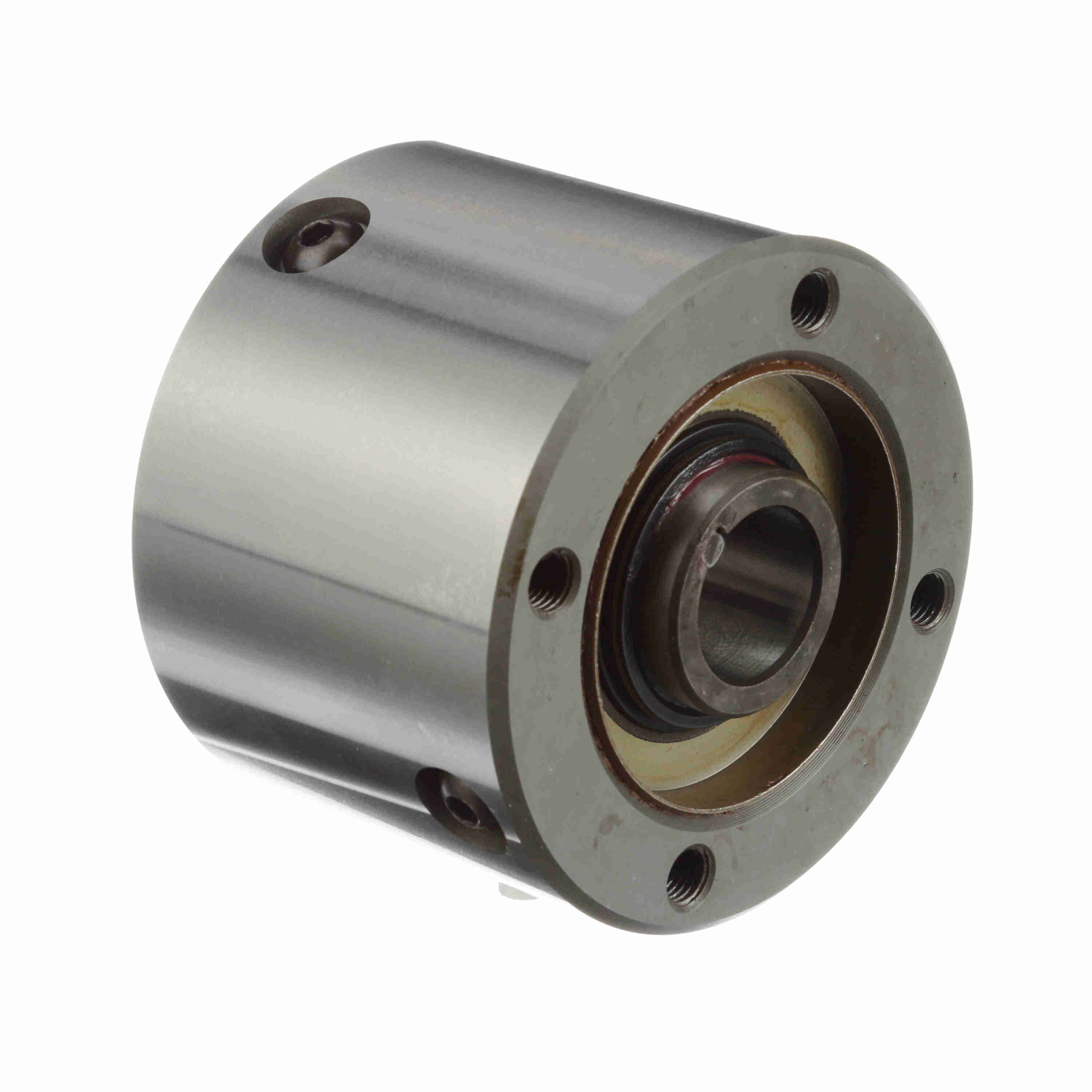

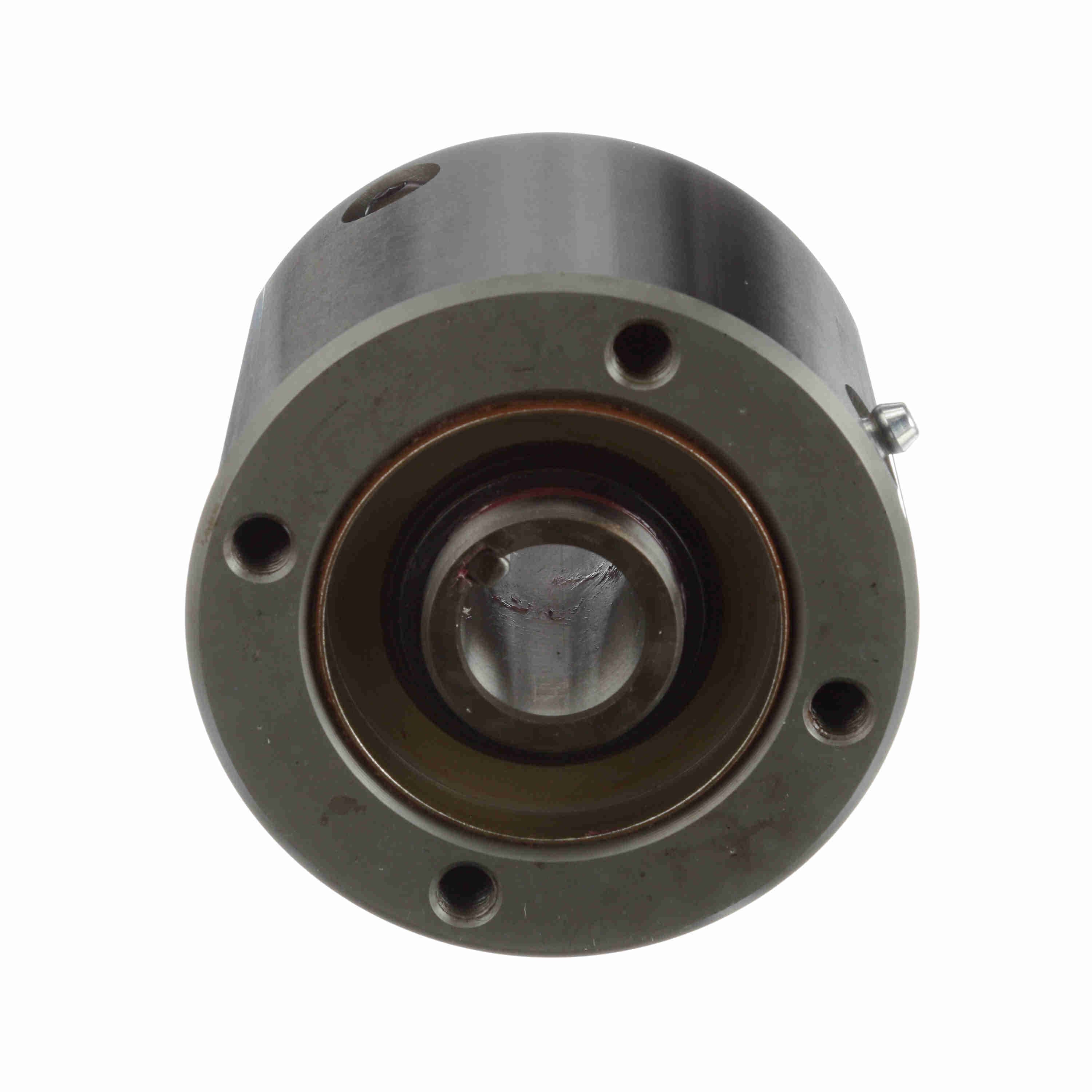

| Product Name | MG400A-G 7/8FB CL |
| Brand | Morse |
| Weight | 5.665 lb |
| Package Length | 4.7 in |
| Package Width | 4.4 in |
| Package Height | 3.3 in |
| Overall Diameter (in) | 3.5 in |
| RPM Max. - Outer Race | 800 |
| Model | MG |
| Clutch size code | 400 |
| Product Type | M Series |
| Mode of Operation |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $2576.51 | — |
| 10+ | $2393.31 | 7% off |
| General duty all types |
| Outer Width (in) | 2.625 in |
| Inner Race Width (in) | 2.75 in |
| Type | CAM Clutches |
| Rated Torque Capacity (ft.-lbs.) | 400 |
| RPM Max. - Inner Race | 2700 |
| Add'l Bearing Support Requirement | No |
| Bore (Min) (in) | 0.625 in |
| Bore Size (in) | 0.875 in |
| Bore (Max) (in) | 0.875 in |
| Backstopping Clutch | Yes |
| Overrunning Clutch | Yes |
| Lubrication Type | Grease |
| Indexing Clutch | Yes |
| Nominal Overrunning Drag (ft-lb) | 0.21 |
| HTC | 8483.60.4040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-115213 |
| Part NumberiManufacturer catalog number | 639104 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288501121 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
