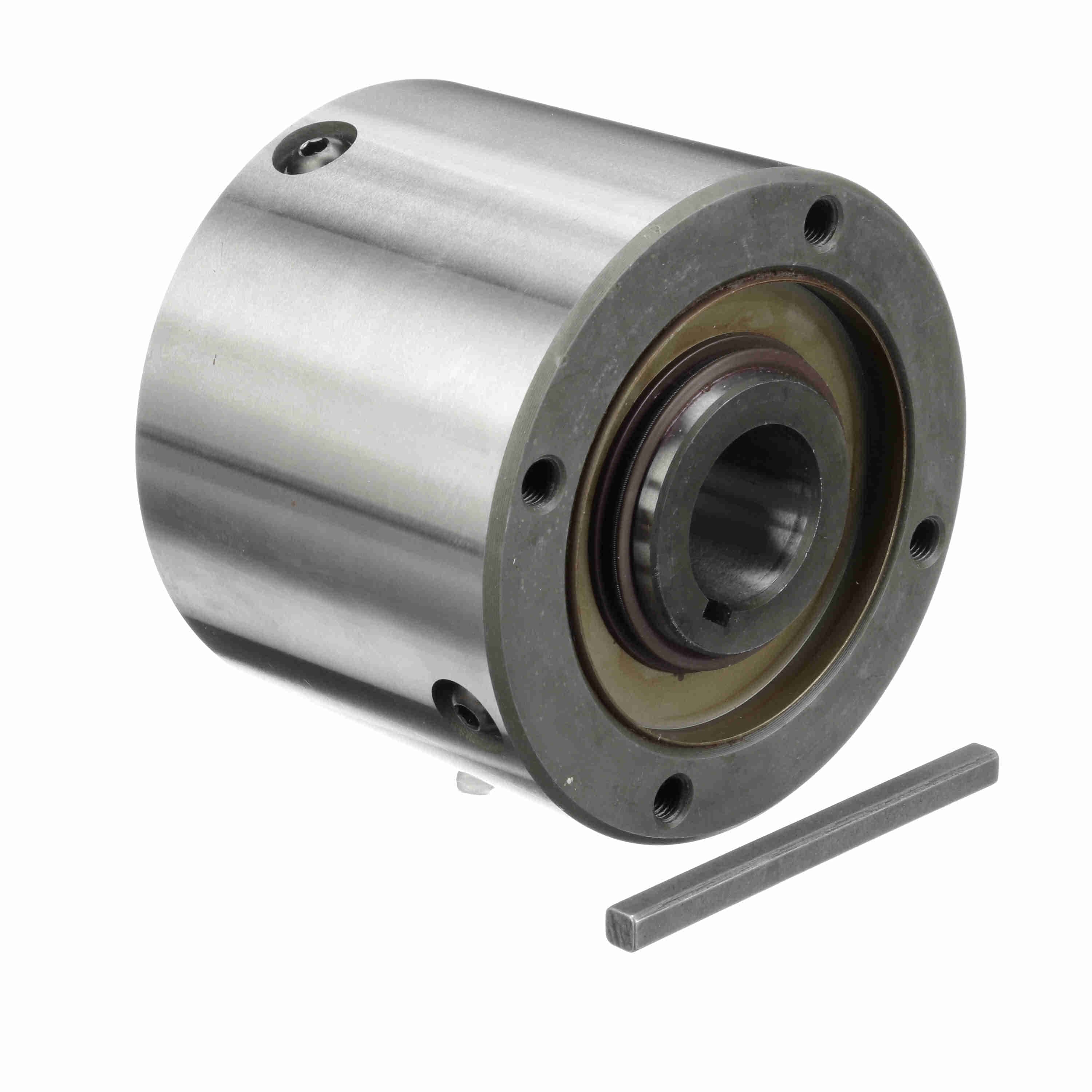

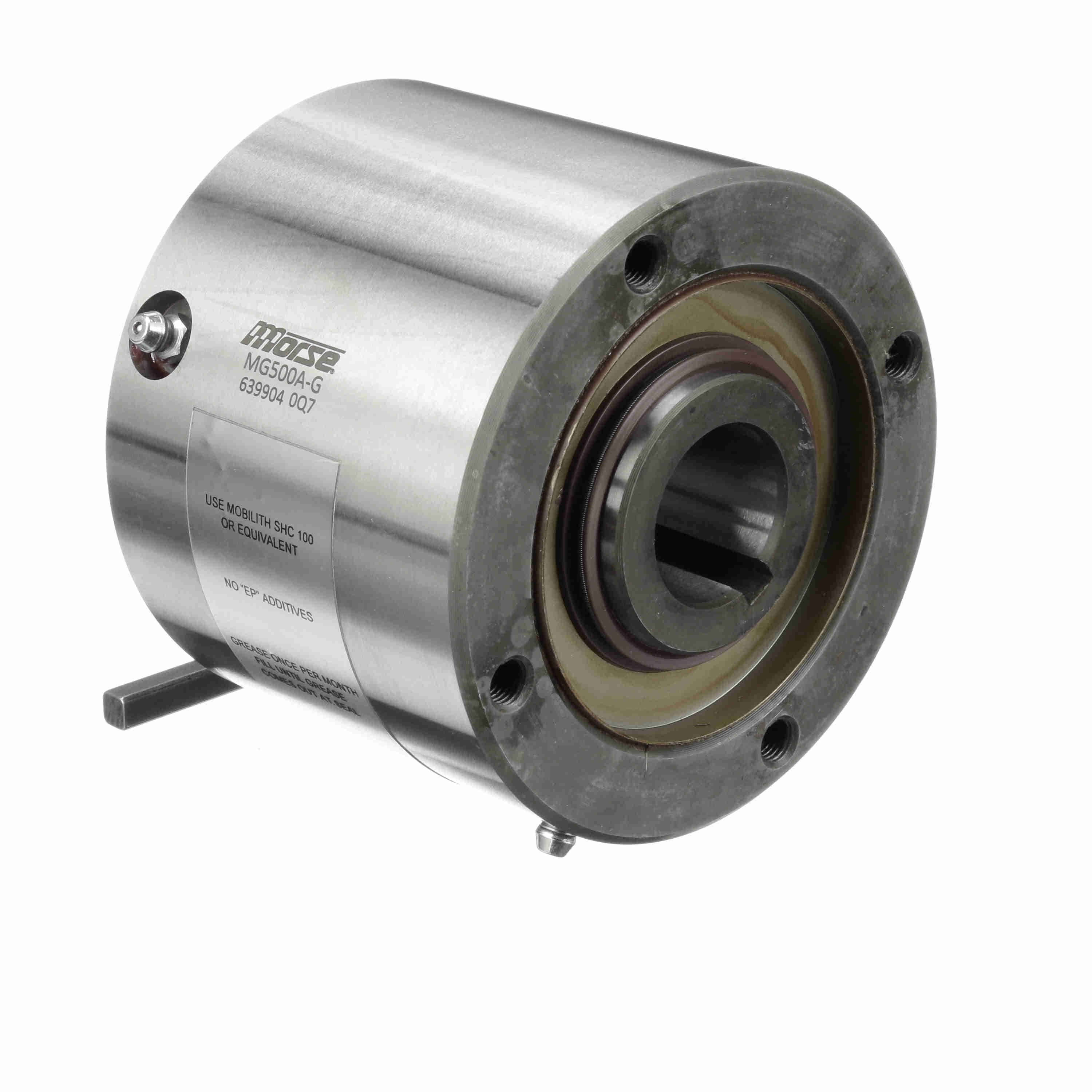

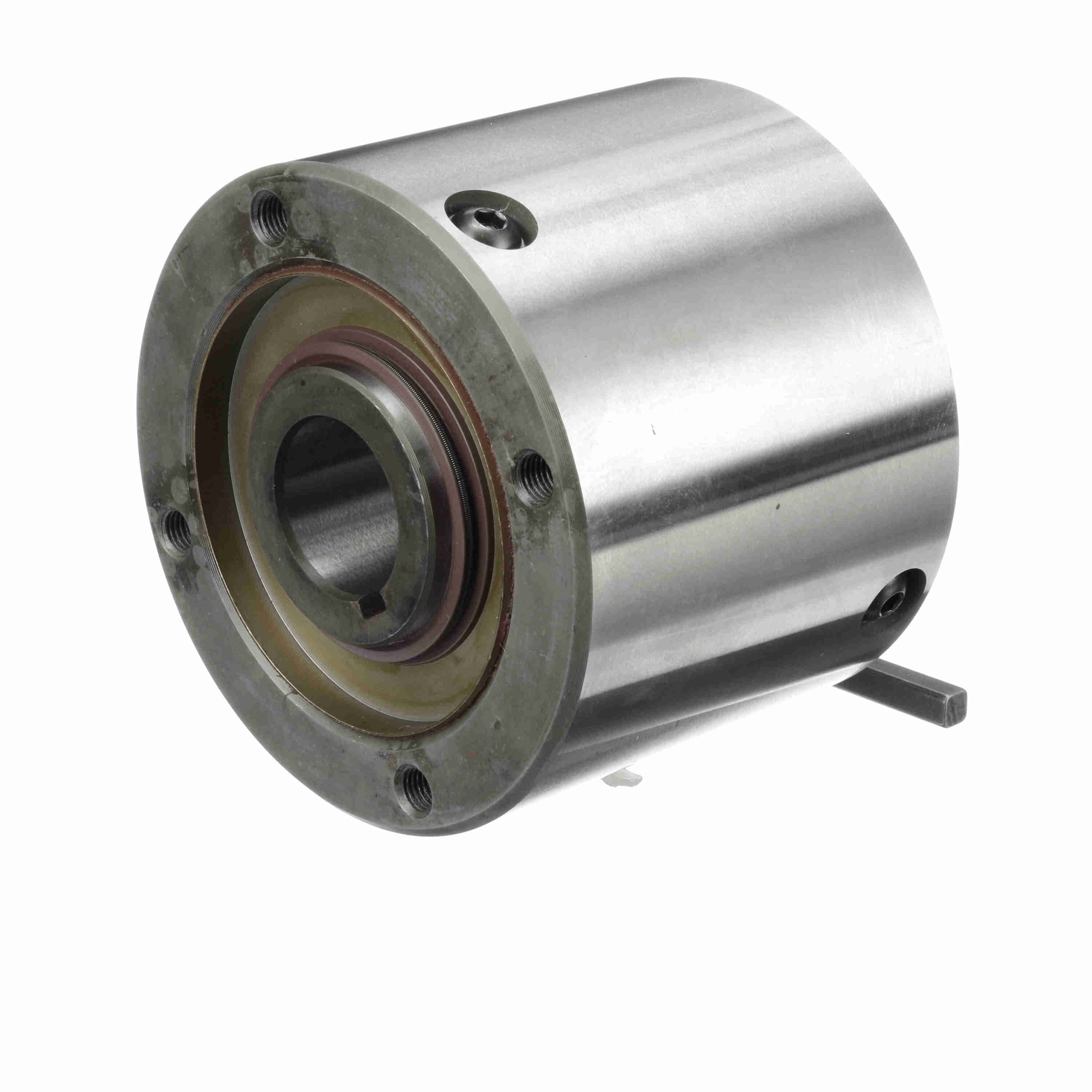

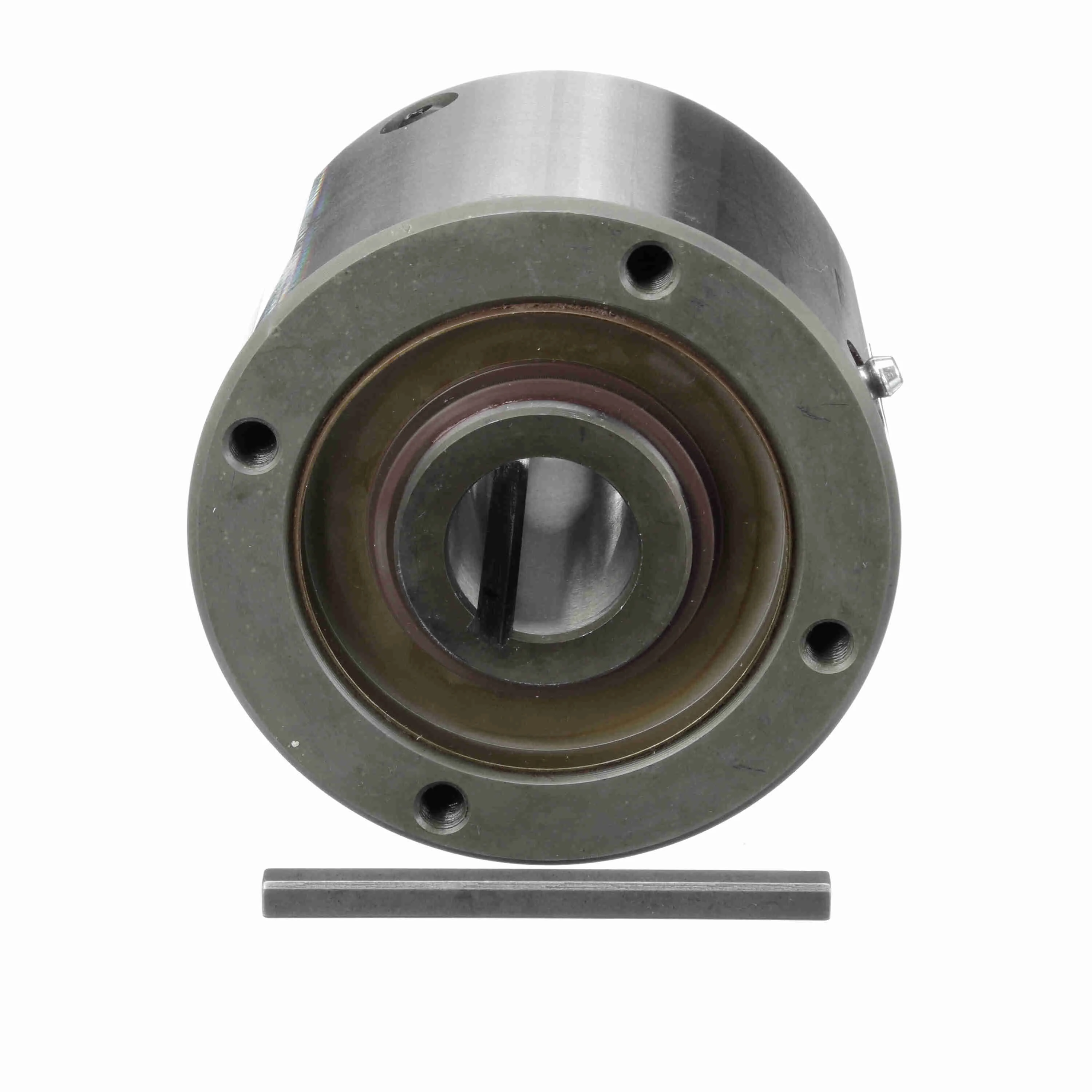

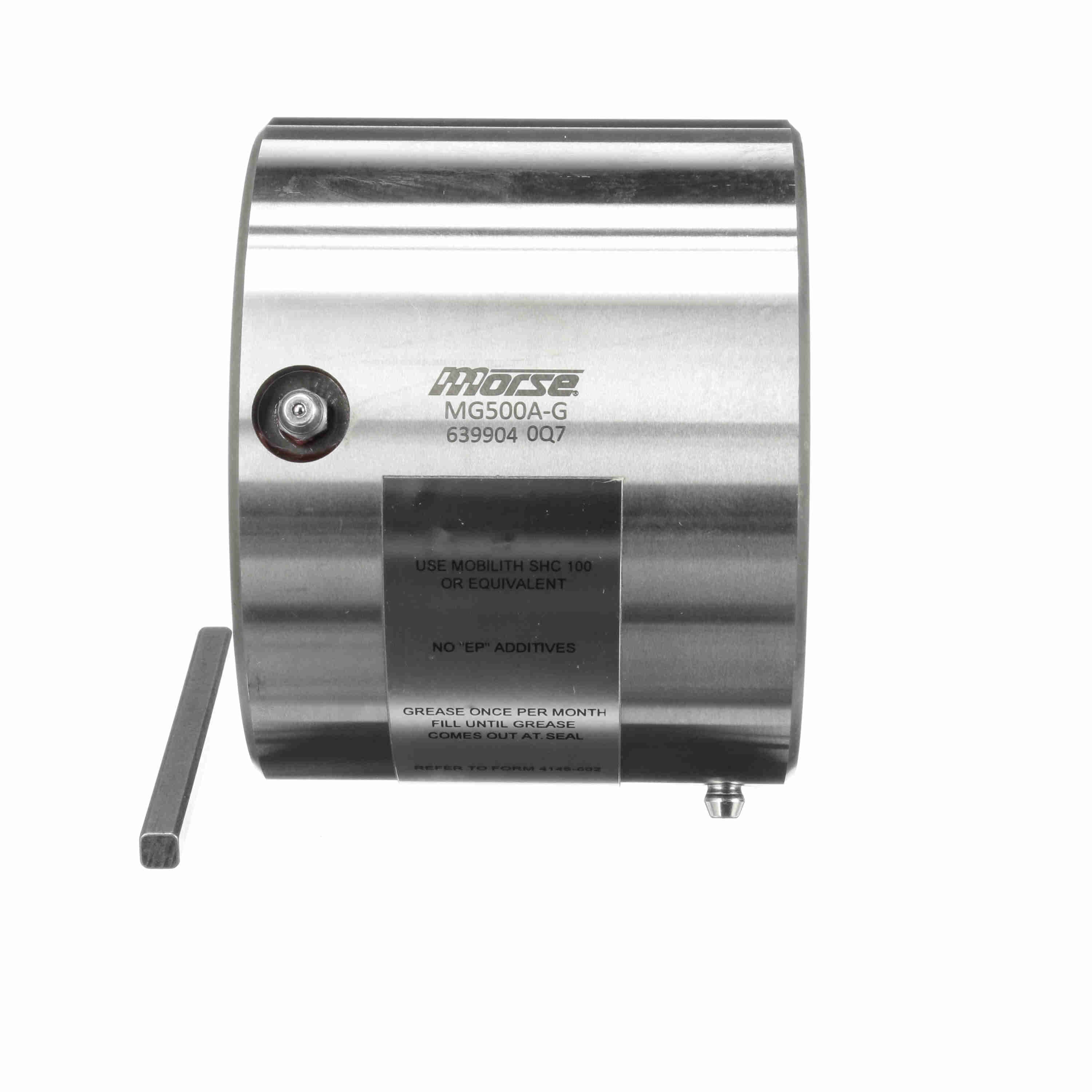

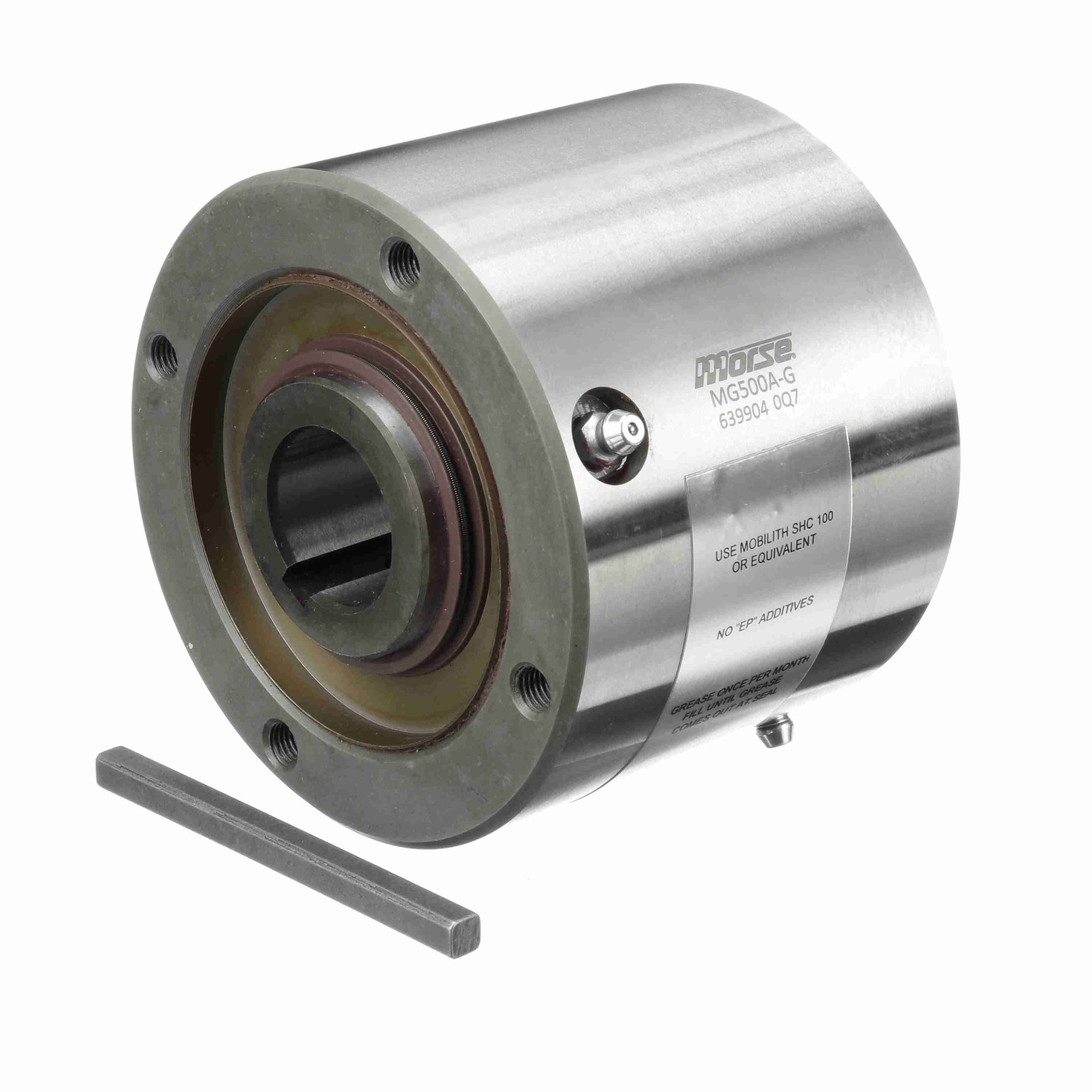

M SERIES CLUTCH
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 639904 |
| Product Name | MG500A-G 1-1/8FB CL |
| Brand | Morse |
| Weight | 10.825 lb |
| Package Length | 5.8 in |
| Package Width | 5.4 in |
| Package Height | 4.4 in |
| Rated Torque Capacity (ft.-lbs.) | 1,175 |
| RPM Max. - Inner Race | 2400 |
| RPM Max. - Outer Race | 750 |
| Mode of Operation | General duty all types |
| Type | CAM Clutches |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $3263.08 | — |
| 10+ | $3027.41 | 7% off |
| Inner Race Width (in) |
| 3.5 in |
| Outer Width (in) | 3.375 in |
| Product Type | M Series |
| Overall Diameter (in) | 4.25 in |
| Model | MG |
| Clutch size code | 500 |
| Add'l Bearing Support Requirement | No |
| Lubrication Type | Grease |
| Indexing Clutch | Yes |
| Bore (Min) (in) | 0.875 in |
| Overrunning Clutch | Yes |
| Bore Size (in) | 1.125 in |
| Backstopping Clutch | Yes |
| Bore (Max) (in) | 1.25 in |
| Nominal Overrunning Drag (ft-lb) | 0.38 |
| HTC | 8483.60.4040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-115217 |
| Part NumberiManufacturer catalog number | 639904 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288501282 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
