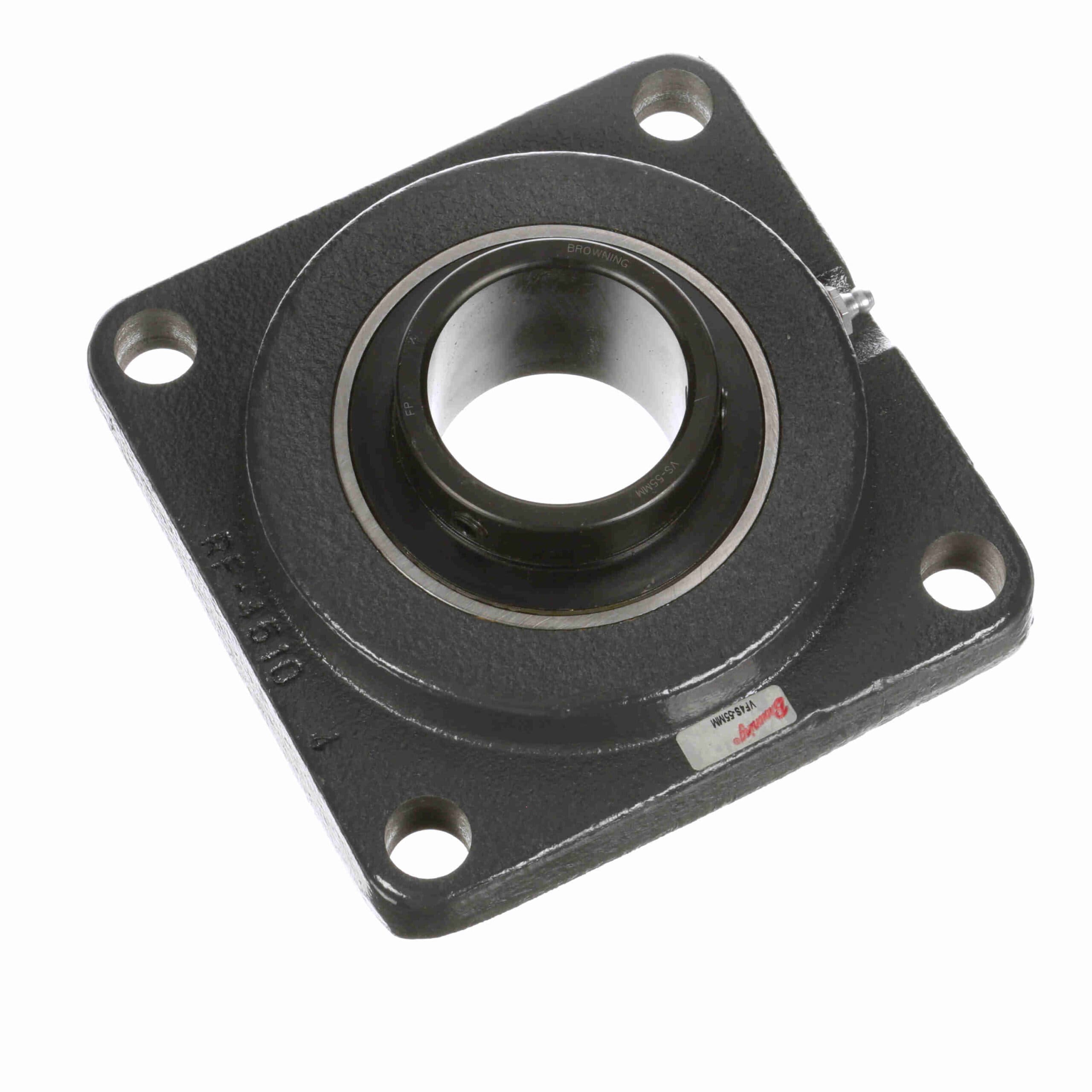

Browning Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided Inner - Setscrew Lock - VF4S-55MM
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 732680 |
| Product Name | VF4S-55MM |
| Brand | Browning |
| Weight | 9.71 lb |
| Package Length | 7.9 in |
| Package Width | 6.8 in |
| Package Height | 2.6 in |
| Insert No. | VS-55MM |
| Inner-Race Heat-Treat Method | Zone-Hardened |
| Bore Shape | Straight |
| Duty Series | Standard Duty |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Maximum Operating Temperature |
| 200 °F |
| Retainer Type | Ball Riding Retainer |
| Housing Material | Cast Iron |
| Measure Units | Metric |
| Rolling Element | Ball Bearing |
| Housing Type | Flange, Four Bolt |
| Housing Base | Semi-Solid |
| Expansion | No |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-119430 |
| Part NumberiManufacturer catalog number | 732680 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Bearings > Flange Units |
