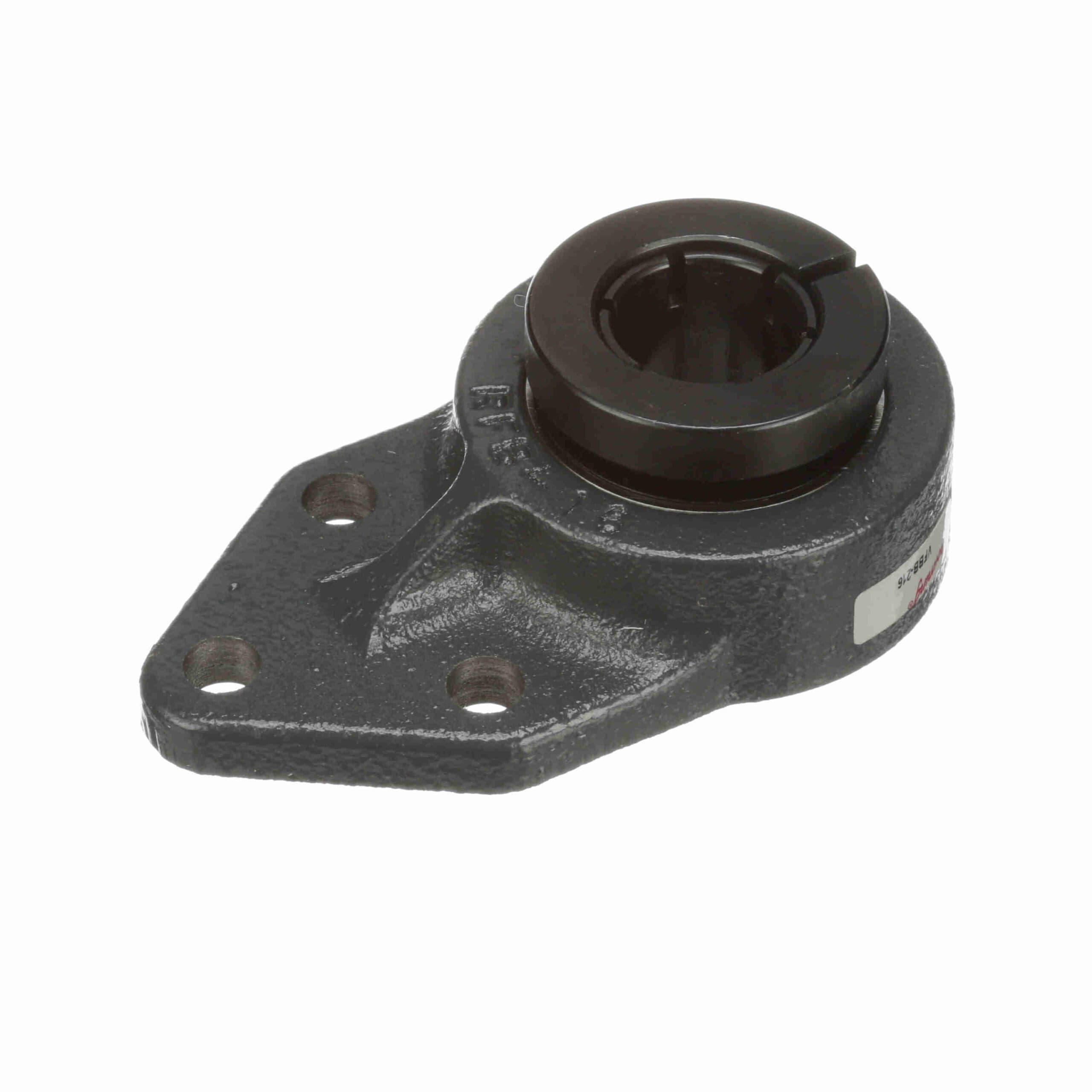

Browning Mounted Cast Iron Three Bolt Flange Bracket Ball Bearing - 52100 Bearing Steel, Black Oxided Inner - Concentric Lock - VFBB-214
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 764435 |
| Product Name | VFBB-214 |
| Brand | Browning |
| Weight | 2.1 lb |
| Package Length | 3.19 in |
| Package Width | 1.69 in |
| Package Height | 5.25 in |
| Duty Series | Standard Duty |
| Expansion | No |
| Maximum Operating Temperature | 200 °F |
| Housing Material | Cast Iron |
| Seal Type | Single Lip Contact Seal with Flinger |
| Rolling Element |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Ball Bearing |
| Retainer Type | Ball Riding Retainer |
| Measure Units | Inch |
| Bore Shape | Straight |
| Housing Base | Solid |
| Housing Type | Flange, Bracket, Three Bolt |
| Speed (Max) | 5500 |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-120147 |
| Part NumberiManufacturer catalog number | 764435 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Bearings > Flange Units |
