SERIES H COUPLING-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1959097 |

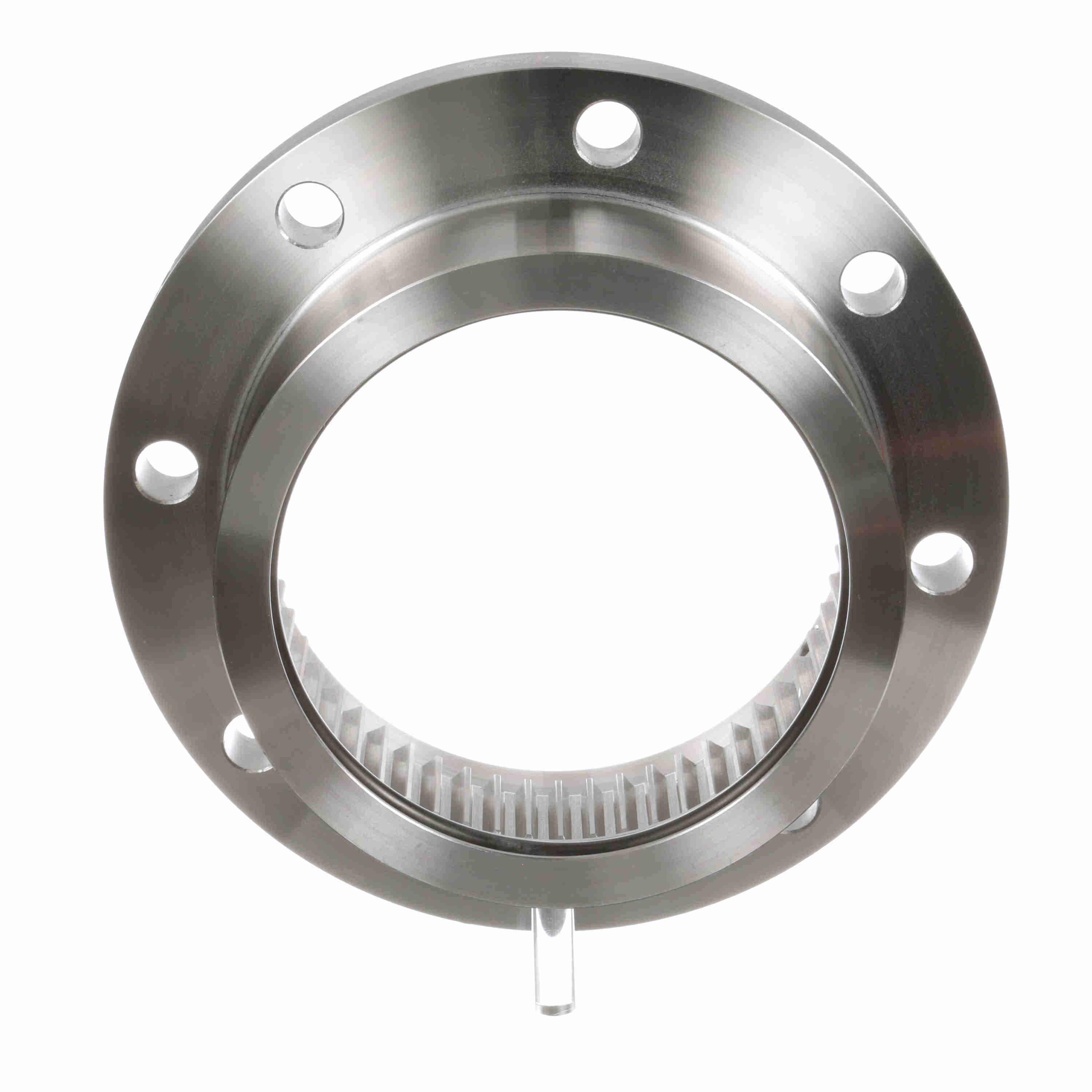

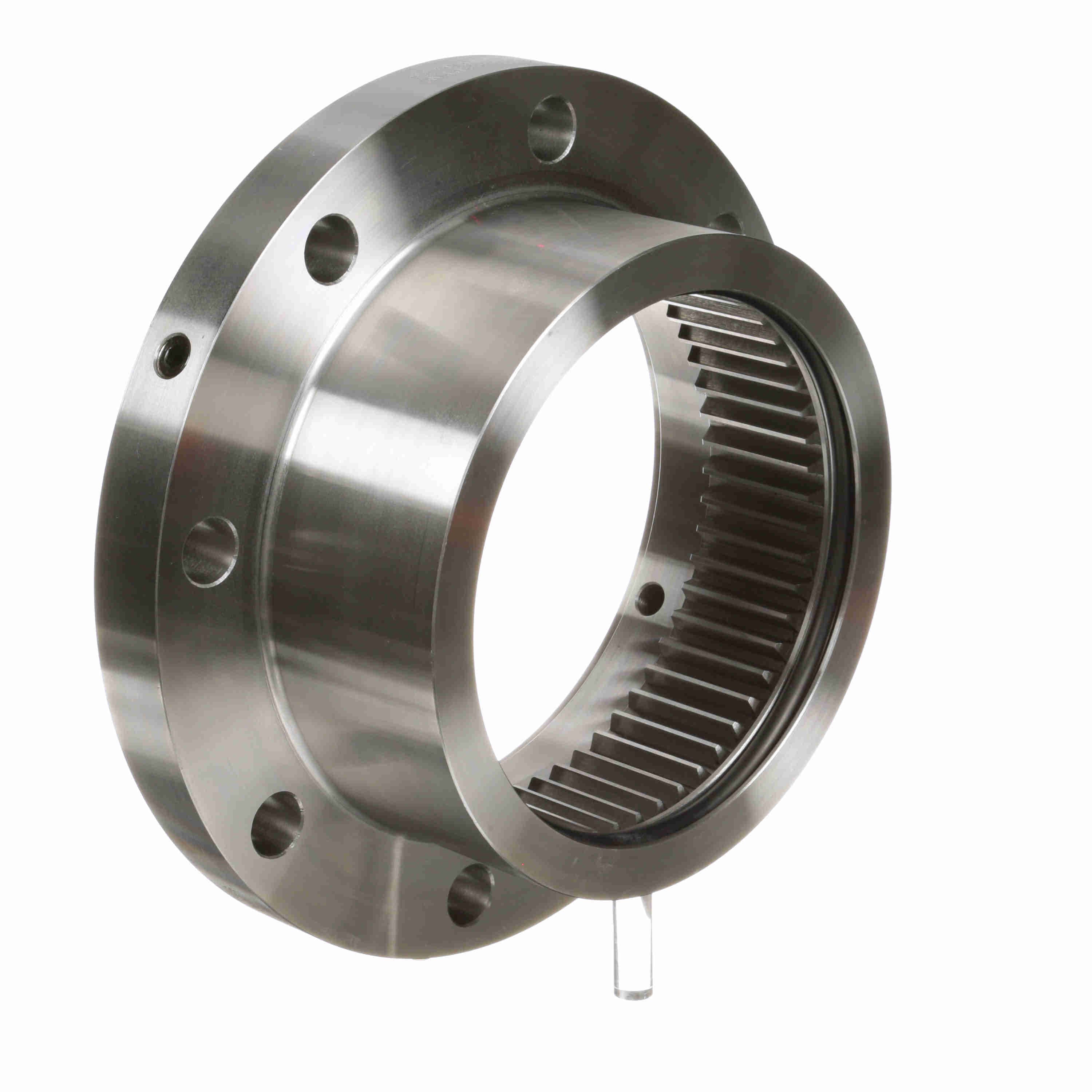

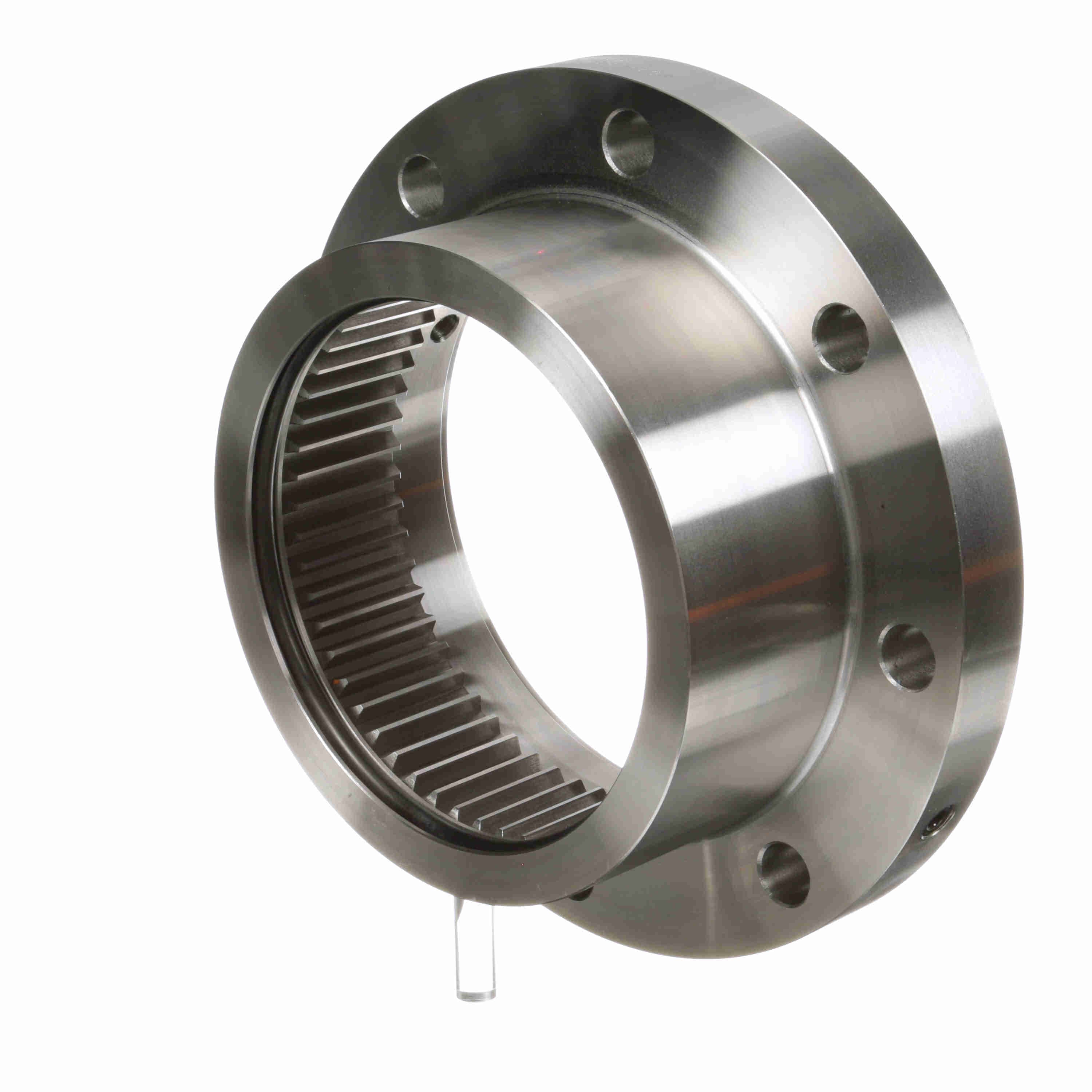

| Product Name | 3 1/2H EB SLEEVE |
| Brand | Kop-Flex |
| Weight | 23.68 lb |
| Package Length | 11.25 in |
| Package Width | 11.25 in |
| Package Height | 11.25 in |
| Bolt Circle | 9.5 in |
| Bolt Type | Exposed |
| Component Type | Standard Sleeve |
| Configuration | Gear Sleeve |
| Coupling Size | 3.5 |
| Coupling Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $812.00 | — |
| Gear Coupling |
| Lube/Non-Lube | Lubricated |
| Measurement System | Imperial |
| Model | Series H |
| Outside Diameter (in) | 11 in |
| Sleeve Material | Steel |
| Sleeve Overall Length (in) | 3.84375 in |
| Sleeve Type | Flanged |
| Speed Max (rpm) | 5,900 rpm |
| Tooth Profile | Crowned |
| Torque Rating (in-lb) | 148,000 in/lbs |
| HTC | 8483.90.8010 |
| Country of Origin | China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-107879 |
| Part NumberiManufacturer catalog number | 1959097 |
| BrandiManufacturer or product brand | Kop-Flex |
| UPCiUniversal Product Code | 662384435115 |
| CategoryiCatalog classification | Couplings |
